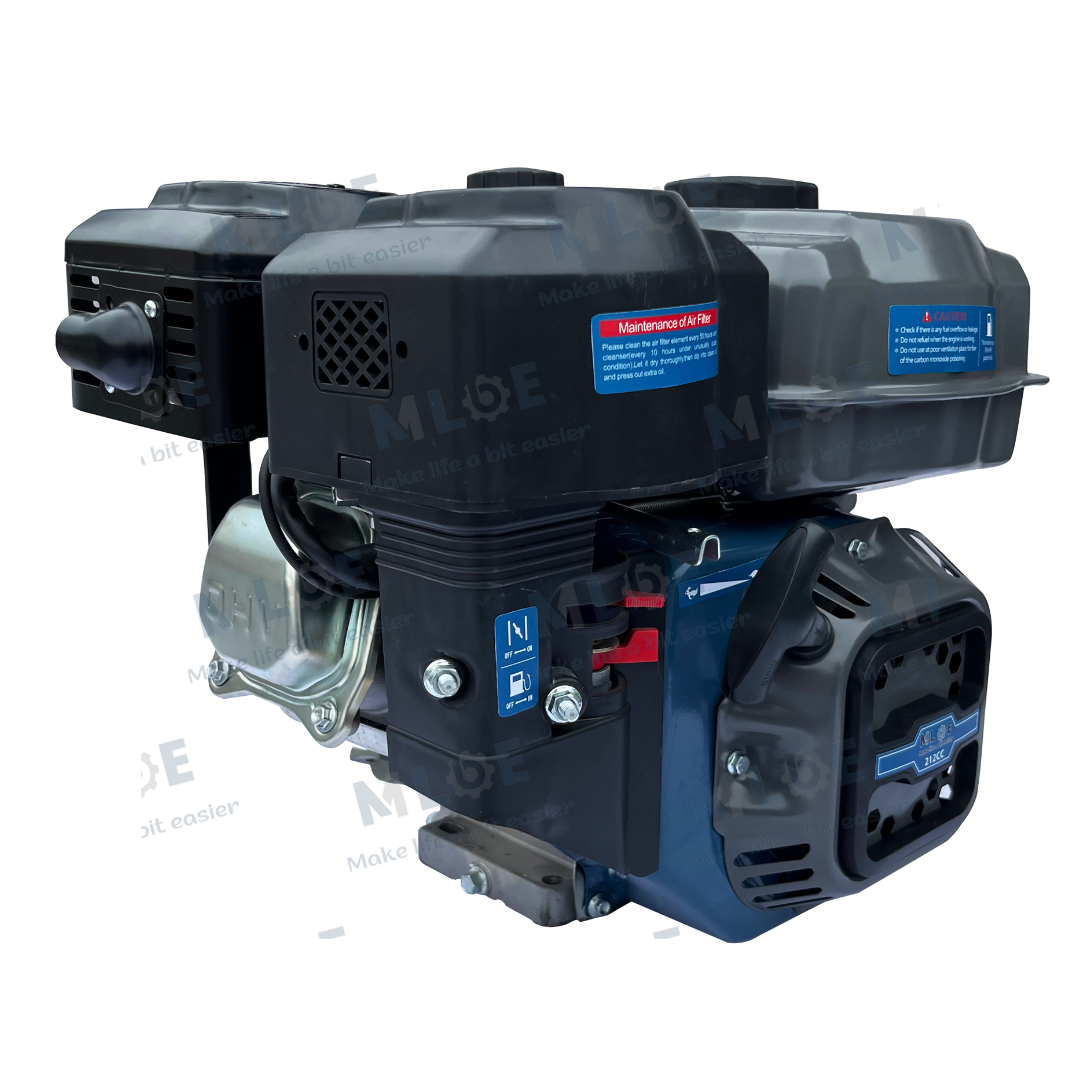

*One-time pull start
*Unique design of anti vibration and low running temperature prolongs the engine life.
*600 hours endurance test
*Less fuel consumption.
*CE/EURO V
Parameter

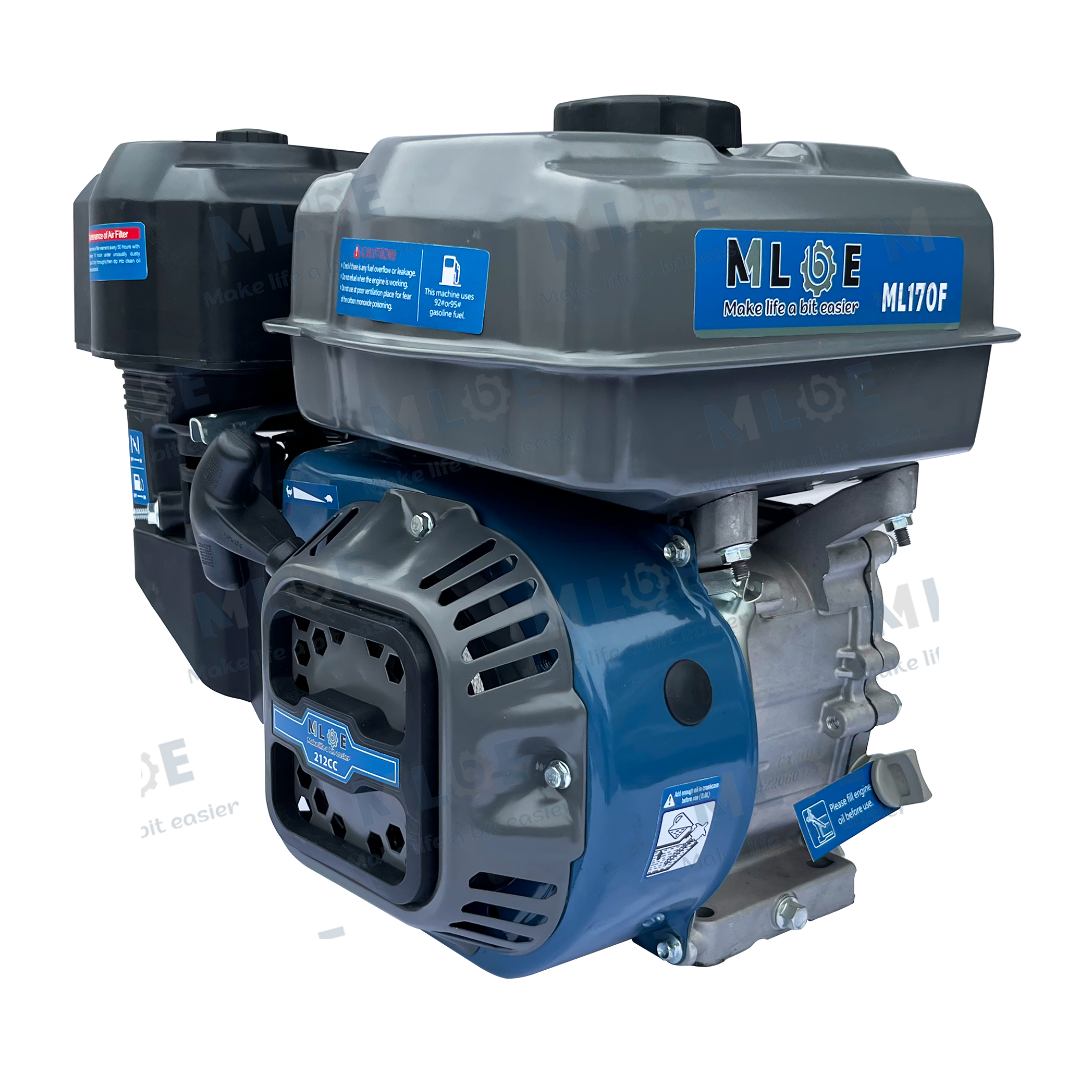

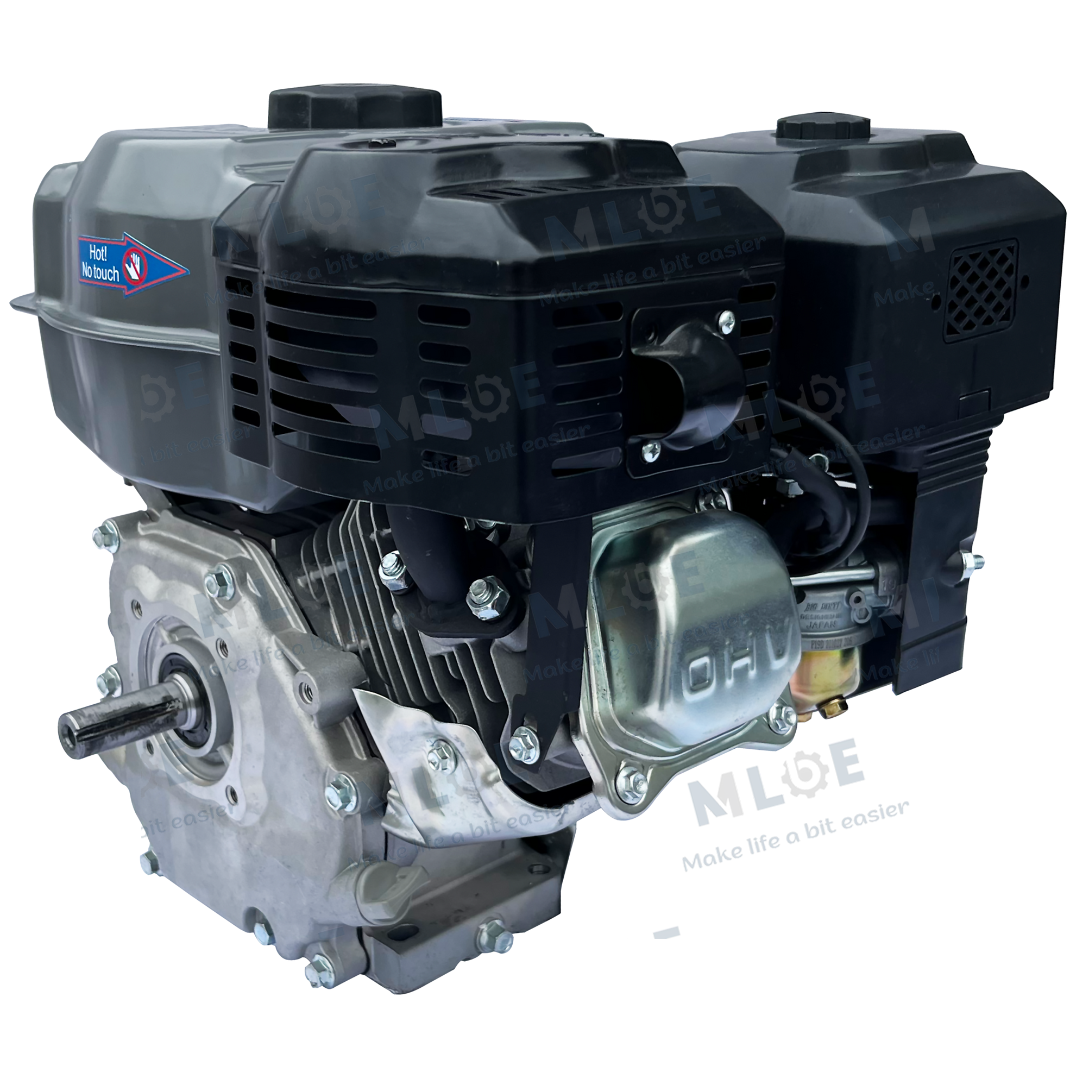

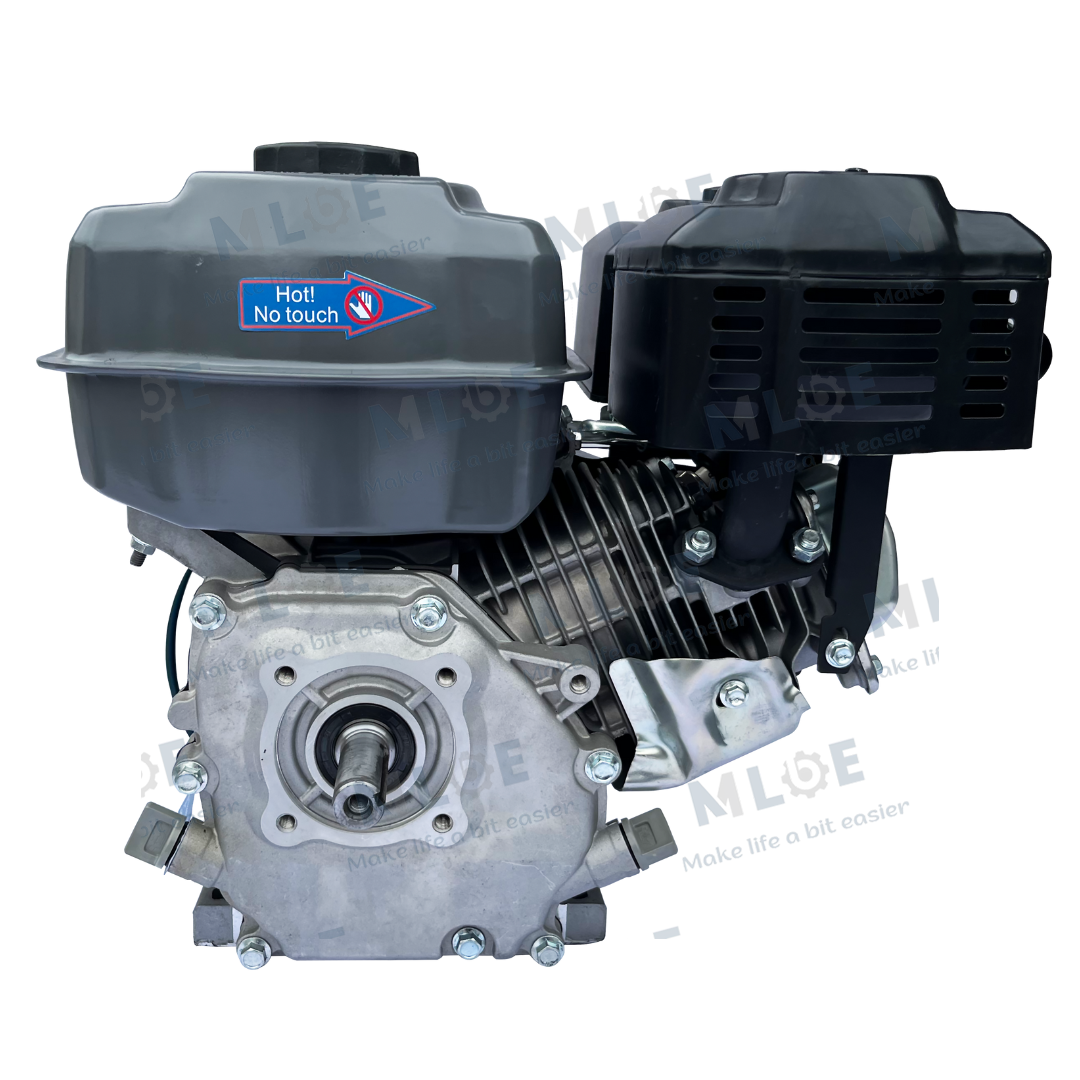

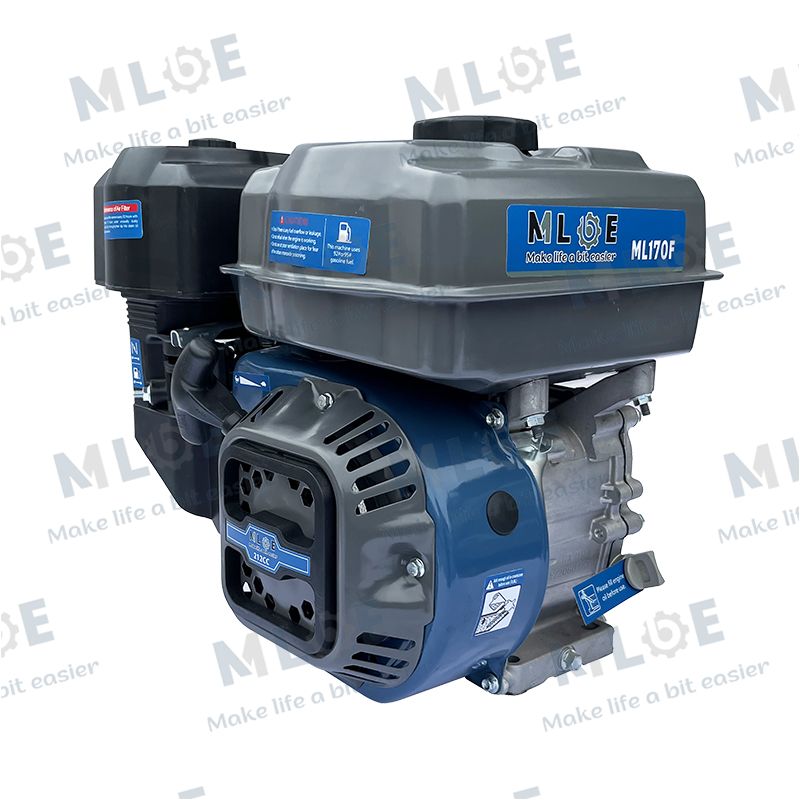

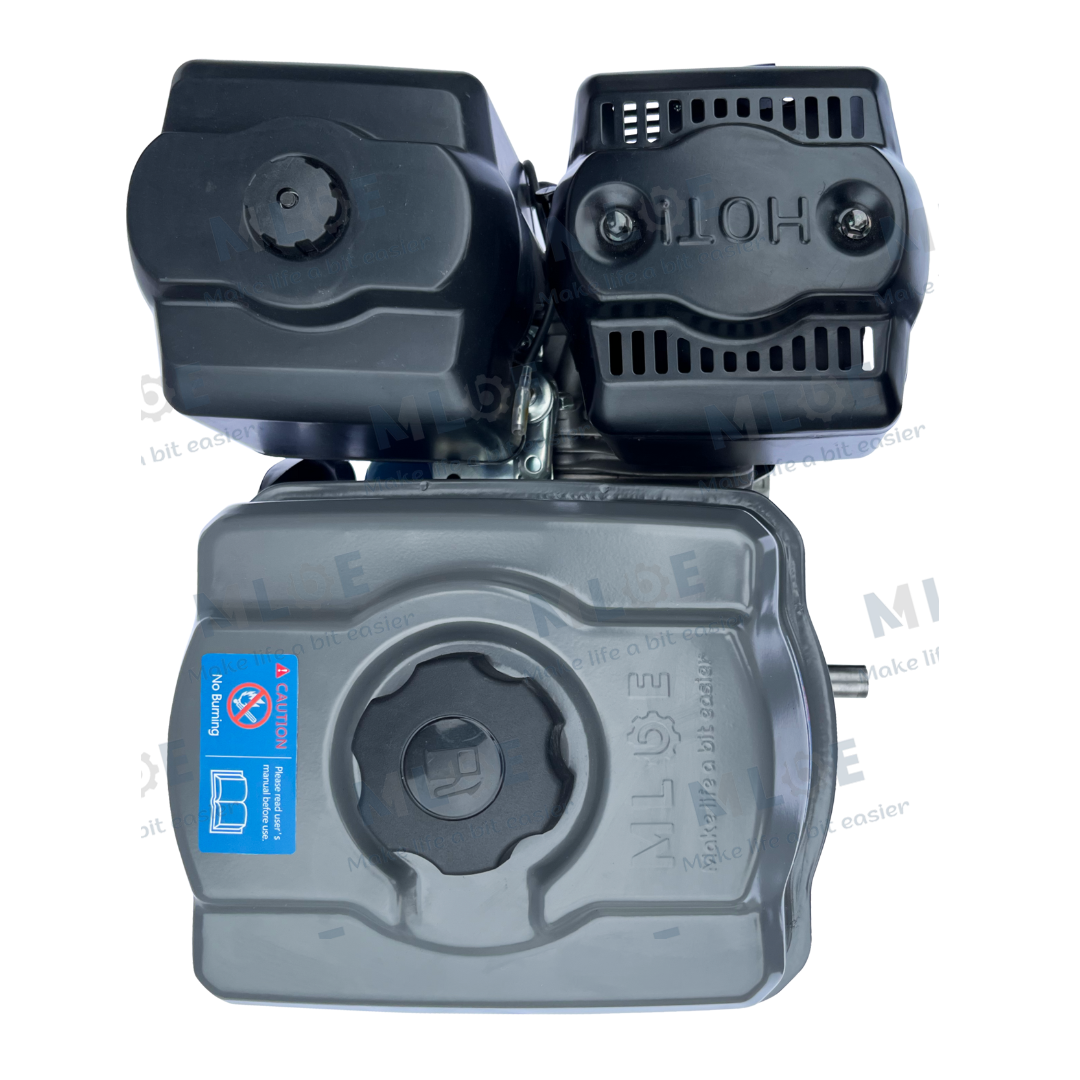

Model | ML168F | ML170F | ML170FB |
Engine Type | Single Cylinder | Single Cylinder | Single Cylinder |
Bore×Stroke(MM) | 68×54 | 70×55 | 70×58 |
Displacement(CC) | 196 | 212 | 223 |
Compression Ratio | 8.7:1 | 8.7:1 | 8.7:1 |
Net Power(Kw/Rpm) | 4.1/3600 | 4.4/3600 | 5.0/3600 |
Net Torque(N.m/Rpm) | 11/2500 | 12/2500 | 13/2500 |
Starting System | Recoil Start /Electric start | Recoil Start /Electric start | Recoil Start /Electric start |
Fuel Tank Capacity(L) | 3.6 | 3.6 | 3.6 |
Engine Oil Capacity(L) | 0.55 | 0.55 | 0.55 |
Fuel Consumption(g/Kw.h) | ≤380 | ≤380 | ≤380 |
Dimension(L×W×H MM) | 395×335×380 | 395×335×380 | 395×335×380 |
N.W/G.W(Kg) | 15/17 | 15/17 | 15/17 |
