MLBE ML-4W1350D-III Mini Tractor — Short OverviewShort · 2026-08-30 · Select to watch
MLBE ML-4W1350D-III 10HP 4WD Diesel Mini Tractor — Demonstration
See the mini tractor working with a trailer and rotary tilling equipment, including manoeuvring and reversing.
ML-4W1350D-III: tractor powertrain and implement checks
The specification status below distinguishes current MLBE product-listing statements from configuration-specific evidence that still needs factory confirmation.
| Item | Published detail | Verification status |
|---|---|---|
| Engine | diesel engine; published 7.5 kW / 10 HP class | Obtain engine-rating test and nameplate |
| Tillage | 1,350 mm working width and 200–240 mm depth listed | Confirm blade kit and soil conditions |
| Transmission | Four forward and one reverse travel gear listed | Request speeds and gear-ratio diagram |
| PTO and load limits | No matching PTO speed, lift capacity or measured drawbar pull verified here | Obtain PTO/hitch arrangement and loaded field-test records |
Model-specific selection note
The listed width and depth describe a cultivation configuration, not every possible implement. For orchard or transport use, request the correct hitch connection and traction limits before describing load or towing capability.
Compare the ML-4W1350D-IV mini tractor and the related operation and buying guide. Consult the MLBE model manual library; request matching technical drawings, maintenance instructions, relevant spare-parts references and evidence of tests through technical support. For wholesale specifications and quantities, email the factory.
Specifying ML-4W1350D-III for cultivation
For ML-4W1350D-III, compare the listed cultivation width with field layout and the space required at row ends. The blade arrangement and gear selection should match the intended soil work. Include the battery, charging arrangements and delivery preparation in an electric-start order.
Configuration checklist
- List cultivation, mowing and any proposed transport tasks separately, including the intended implements.
- Confirm hitch or mounting interfaces, driven-attachment requirements, wheel configuration and braking arrangements.
- Check assembled dimensions, turning space, handling during delivery and the permitted loads for the selected configuration.
Is listed cultivation depth achieved in every soil?
No. Achievable depth depends on soil condition, blade condition, adjustment and the number of passes. Treat the published specification as a configuration reference and confirm the intended application before committing to a work-rate estimate.
Operation and service planning
Check brakes, steering, tyres, guards and attachment security before work. Ground condition, gradients and fitted equipment affect stability. Use the machine-specific operating limits and training requirements. Stop, immobilise and isolate the machine before servicing or working near an implement.
For the applicable operating instructions or parts reference, send the complete model and production identification to MLBE technical support. The MLBE document centre helps identify the relevant resources. Confirm document revision, included accessories, packaging and agreed support terms for the supplied configuration.
Compare ML-4W1350D-IV and ML4W-135FD for related MLBE options. For factory orders, provide quantities, destination, configuration and artwork requirements through MLBE dealer and OEM supply.

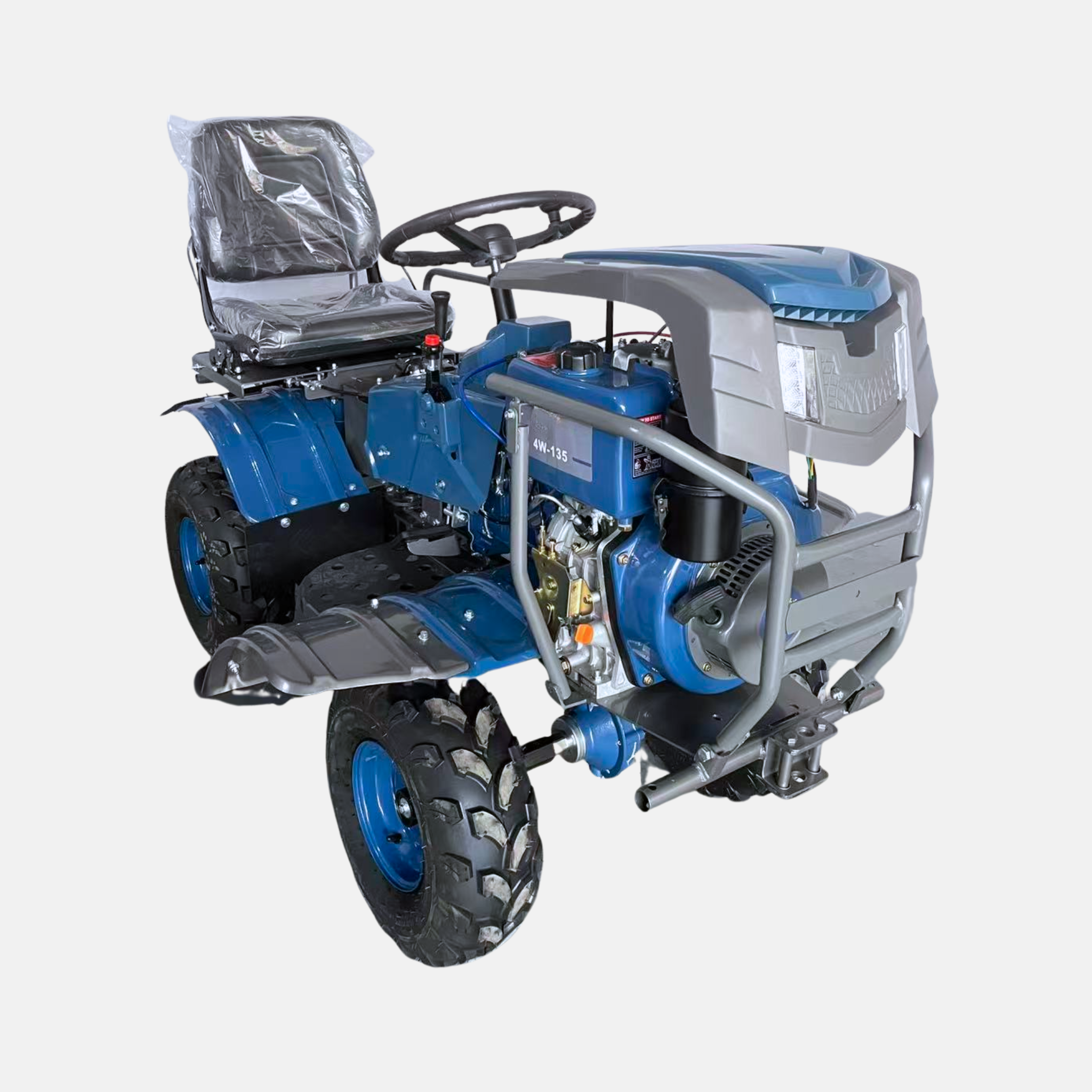

Compact 10HP 4WD Diesel Mini Tractor for Tilling and Field Work
The MLBE ML-4W1350D-III is a compact four-wheel-drive diesel mini tractor built for cultivation, soil preparation and small-farm work. Its 7.5 kW / 10HP diesel engine, gear transmission and electric starting system provide a practical power platform for repeated field operation.
A 1350 mm tilling width helps cover larger seedbed areas efficiently, while the 200-240 mm working depth supports soil loosening and preparation before planting. Four forward gears and one reverse gear give the operator useful speed choices for travel and tilling.
Built for Versatile Agricultural Use
The compact layout is suitable for orchards, vegetable fields and other areas where manoeuvrability matters. Standard extended dry-land blades and multiple wheel configurations support different ground conditions. Contact MLBE to discuss compatible implements and market-specific configurations.
Compare the ML-4W1350D configurations
The ML-4W1350D-III lists a 1350 mm tilling width, 40 extended dry-land blades and four forward gears. The ML-4W1350D-IV lists a standard 1050 mm working width, a maximum 1315 mm configuration and three forward gears. Compare the implement package and field access requirements before choosing between these models.
Technical Specifications
| Specification | Value |
|---|---|
| Model | ML-4W1350D-III |
| Engine | diesel engine |
| Rated power | 7.5 kW / 10HP |
| Starting system | Electric start, 32Ah battery |
| Drive type | Four-wheel drive; ATV / air wheels |
| Transmission | Gear drive |
| Clutch | Friction plate |
| Travel gears | 4 forward / 1 reverse |
| Tilling gears | 4 forward / 1 reverse |
| Tilling width | 1350 mm |
| Tilling depth | 200-240 mm |
| Blade configuration | 40 extended dry-land blades |
| Net / gross weight | 242 / 324 kg |
| Packing dimensions | 1650 x 620 x 1100 mm |
| Loading quantity | 22 units / 20GP; 50 units / 40HQ |
View more MLBE mini tractors, use the Mini Tractor Buying Guide for Importers and Dealers to compare power, 4WD, implements and supply considerations, see MLBE’s mini tractor and agricultural equipment showcase, review the catalogue and user manuals, or contact MLBE for specifications, attachments, MOQ and distributor enquiries.
MLBE implements for power tillers and 4WD mini tractors
MLBE offers its 18 accessory types for both its power-tiller family and four-wheel-driven mini tractors. Browse the 18 farm accessories, including furrow openers, ploughs, ridgers, seeders, cultivators and potato harvesters. Confirm the particular ML-4W1350D-III hitch or adapter, available drive connection and operating clearance with MLBE before placing an order; compatibility by equipment family does not mean one universal connection suits every model.
ML-4W1350D-III FAQ
What engine does the ML-4W1350D-III use?
It uses a diesel engine rated at 7.5 kW / 10HP.
What are the tilling width and depth?
The specified tilling width is 1350 mm and the working depth is 200-240 mm.
How many gears does the tractor have?
The page specifies four forward gears and one reverse gear for both travel and tilling operation.
Is it suitable for orchard and small-farm work?
Yes. Its compact 4WD layout is intended for cultivation, soil preparation, orchards, vegetable fields and other small-farm applications where manoeuvrability matters.
