ML-4W1350D-IV specifications and drivetrain
The specification status below distinguishes current MLBE product-listing statements from configuration-specific evidence that still needs factory confirmation.
| Item | Published detail | Verification status |
|---|---|---|
| Engine | diesel engine; 8.7 kW at 3,600 rpm in listing | Confirm engine rating and serial-compatible parts |
| Gearbox | Three forward gears and one reverse listed | Request speed and torque ranges |
| Cultivation | 1,050 mm nominal working configuration, up to 1,315 mm stated | Confirm the blade configuration and depth under specified soil conditions |
| Manoeuvrability | 112 mm ground clearance and up to 2.4 m turning radius stated | Confirm test configuration and overall dimensions |
| PTO/traction | No verified PTO rpm, drawbar force or implement lift rating supplied here | Obtain corresponding diagrams and signed test values |
Model-specific selection note
Do not assume that the III and IV versions share the same PTO, implement interface or gear parts. The selected delivery specification should identify the motor, tyres, blade set, starting system and approved implements, backed by factory documentation.
Compare the ML-4W1350D-III mini tractor and the related operation and buying guide. Consult the MLBE model manual library; request matching technical drawings, maintenance instructions, relevant spare-parts references and evidence of tests through technical support. For wholesale specifications and quantities, email the factory.
Working-width planning for ML-4W1350D-IV
Use overall dimensions to check access and the fitted working width to plan crop beds. Browse the three-row corn seeder and flip plough; ask MLBE to confirm the mounting interface, drive parts and clearance for ML-4W1350D-IV.
Configuration checklist
- List cultivation, mowing and any proposed transport tasks separately, including the intended implements.
- Confirm hitch or mounting interfaces, driven-attachment requirements, wheel configuration and braking arrangements.
- Check assembled dimensions, turning space, handling during delivery and the permitted loads for the selected configuration.
Can four-wheel drive establish a towing capacity?
No. Towing suitability also depends on the approved hitch, brakes, trailer, load and terrain. Obtain the permitted arrangement for ML-4W1350D-IV before including transport work in the purchase specification.
Operation and service planning
Check brakes, steering, tyres, guards and attachment security before work. Ground condition, gradients and fitted equipment affect stability. Use the machine-specific operating limits and training requirements. Stop, immobilise and isolate the machine before servicing or working near an implement.
For the applicable operating instructions or parts reference, send the complete model and production identification to MLBE technical support. The MLBE document centre helps identify the relevant resources. Confirm document revision, included accessories, packaging and agreed support terms for the supplied configuration.
Compare ML-4W1350D-III and ML4W-135 for related MLBE options. For factory orders, provide quantities, destination, configuration and artwork requirements through MLBE dealer and OEM supply.

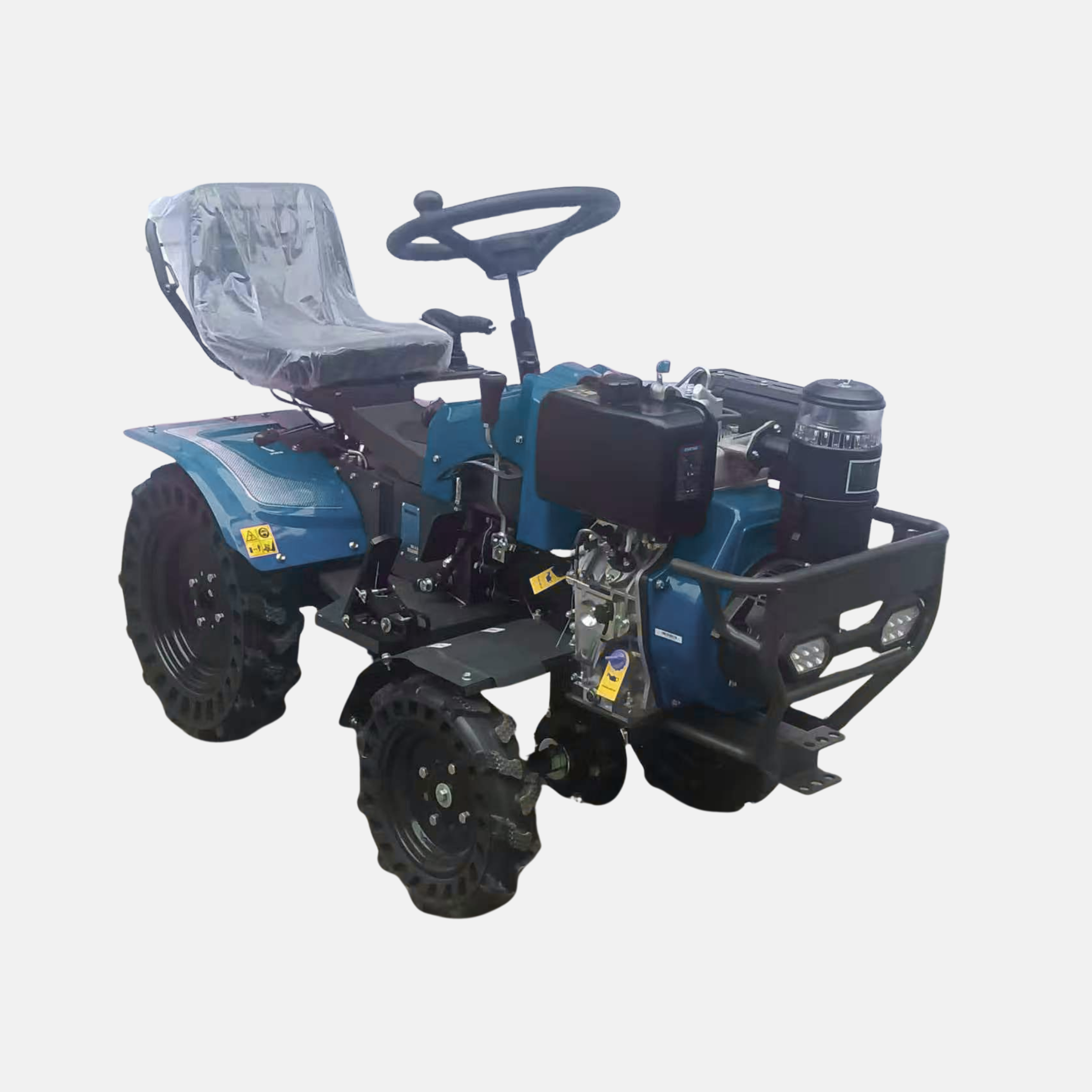

Compact 4WD Diesel Mini Tractor with an 8.7kW Engine
The MLBE ML-4W1350D-IV is a compact four-wheel-drive diesel mini tractor developed for cultivation, transportation and general small-farm work. Its diesel engine delivers 8.7 kW at 3600 rpm, while the compact chassis helps the machine work in narrow fields, orchards and vegetable-growing areas.
Three forward gears and one reverse gear provide a useful operating range. The standard 1050 mm working configuration can be expanded to a maximum width of 1315 mm, allowing the machine to be adapted to different field layouts.
Stable Operation in Confined Agricultural Areas
A minimum ground clearance of 112 mm, a turning radius of no more than 2.4 metres and a steering angle of +/-22 degrees support manoeuvring in confined areas. Optional working iron wheels are available for different soil and traction requirements.
Choose the working configuration
The standard 1050 mm working width differs from the listed 1114 mm overall machine width. Use overall dimensions to check gateways and storage, and confirm the implement setup needed for the maximum 1315 mm working width. Compare the ML-4W1350D-III if you are considering a 1350 mm tilling configuration with four forward gears.
Technical Specifications
| Specification | Value |
|---|---|
| Model | ML-4W1350D-IV |
| Engine | diesel engine |
| Rated power | 8.7 kW at 3600 rpm |
| Overall weight | 255 kg |
| Overall dimensions | 1915 x 1114 x 1200 mm |
| Working width | Up to 1315 mm; standard 1050 mm |
| Minimum ground clearance | 112 mm |
| Steering angle | +/-22 degrees |
| Turning radius | No more than 2.4 m |
| Rear / front wheel diameter | 568 / 415 mm |
| Working iron wheel diameter | 430 mm; optional 480 mm |
| Travel gears | 3 forward / 1 reverse |
| Operating travel speed | 0.23-0.81 km/h |
| 4WD travel speed | 3.5-12.5 km/h |
Compatible implement choices for this 4WD mini tractor range
MLBE’s 18 listed attachment types are offered for power tillers and four-wheel-driven mini tractors. Compare the intended agricultural application and ask the factory to match the mounting interface, drive parts and safety requirements to the ML-4W1350D-IV configuration specified in your order. The product catalogue does not publish one interchangeable hitch specification for every attachment.
Explore MLBE mini tractors, use the Mini Tractor Buying Guide for Importers and Dealers to compare power, 4WD, implements and supply requirements, review MLBE Technical Support, or contact our team for implement options, packaging and distributor enquiries.
