ML177F 9 HP petrol tiller: MLBE published model data
The figures below are extracted from MLBE’s existing model descriptions and technical tables. They must be matched to the ordered equipment and do not claim to be independently measured field performance.
| Model-specific feature | Published reference |
|---|---|
| Engine | ML177F, 270 cc; published 9 HP / 6.5 kW maximum at 3,600 rpm |
| Tilling width and minimum depth | 1,100 mm; ≥100 mm |
| Blade groups | 3+1 groups; 32 blades with side disc |
| Transmission | #32 six-speed gearbox with low/high travel ranges |
| Starting / mass | Recoil start; 115 kg net |
Field-use evidence and fitment
ML177F has the narrower 1,100 mm and 32-blade package, compared with ML188F’s 1,350 mm and 40 blades. Even when the gearbox family is shared, that does not prove interchangeability of blade shafts, belts or powertrain parts. A dealer should base application claims on measured cultivation in comparable soil and the final blade-set specification.
Compare with the ML188F 13 HP wider petrol tiller. To prepare an independently useful cultivation test, record soil texture, moisture, initial compaction, blade arrangement, travel gear, measured working depth, engine rpm and cultivated area over time. These are suggested measurement fields, not MLBE test results.
Check the MLBE product manuals and request matching spare-parts drawings, an attachment fitment record and maintenance intervals from MLBE technical support. For a confirmed factory configuration enquire directly by email.
Choosing ML177F for bed and orchard work
ML177F is listed with a 1100 mm working width and a 32-blade arrangement. These are useful starting points when planning beds, orchard rows and access routes. Compare the complete fitted width with the space available, including clearance for the operator and turning at row ends.
Configuration checklist
- Describe soil condition, crop or row spacing, working width and the intended cultivation task.
- Identify the blade set, transport wheels, depth-control arrangement and the connector for each proposed implement.
- Separate standard equipment from optional attachments and confirm the assembled operating and transport dimensions.
How does ML177F differ from ML188F?
The published configurations use different engine sizes, working widths and blade counts. Compare the required cultivated width and handling weight first; a larger engine does not by itself make the wider machine the better match for a narrow plot.
Operation and service planning
Inspect the working area for stones, wire and other obstructions. Avoid cultivation when soil is too wet to work without smearing or compaction. Select the approved depth and gear for the conditions. Stop and isolate the machine, and wait for all movement to cease before clearing or changing attachments.
For the applicable operating instructions or parts reference, send the complete model and production identification to MLBE technical support. The MLBE document centre helps identify the relevant resources. Confirm document revision, included accessories, packaging and agreed support terms for the supplied configuration.
Compare ML188F and ML178F for related MLBE options. For factory orders, provide quantities, destination, configuration and artwork requirements through MLBE dealer and OEM supply.

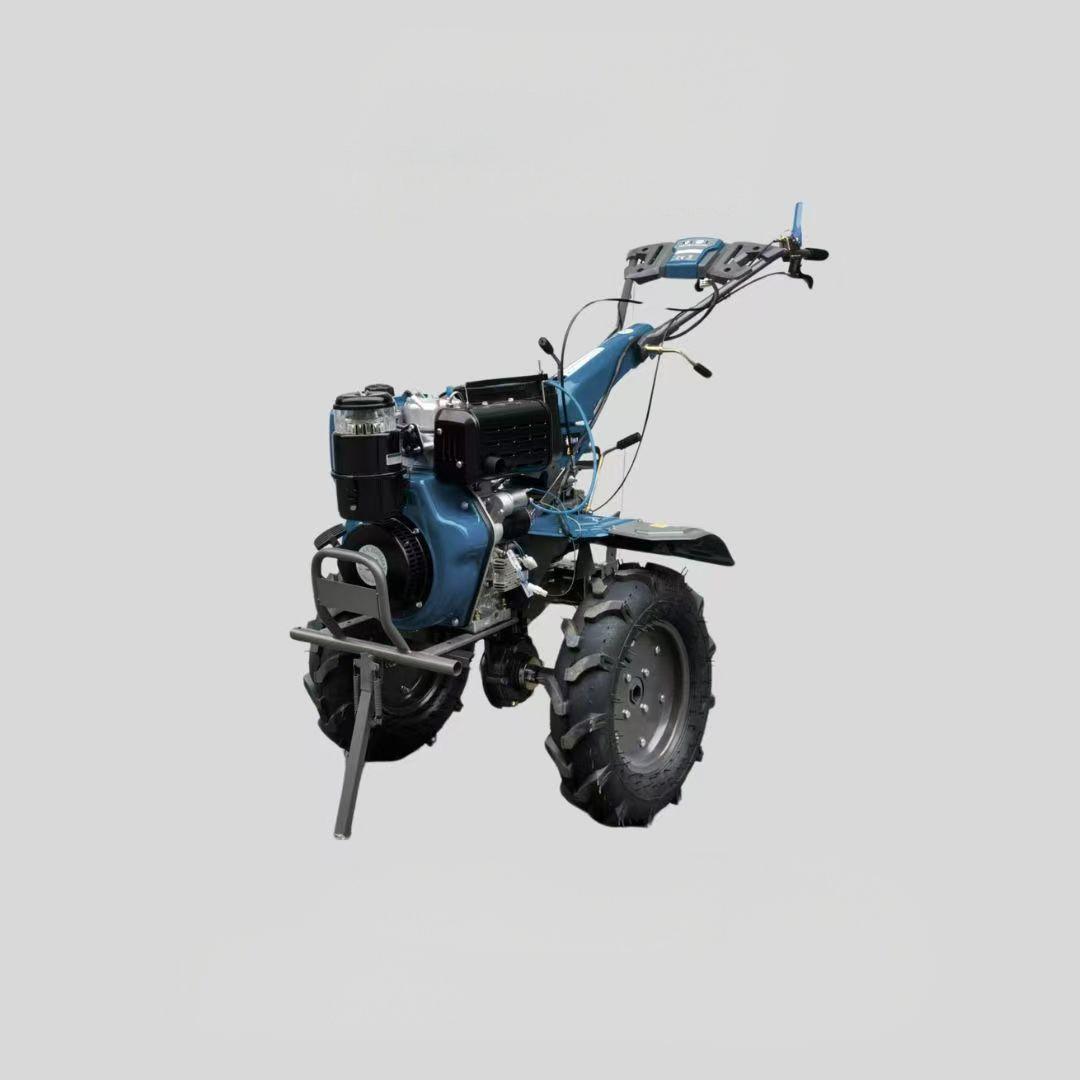

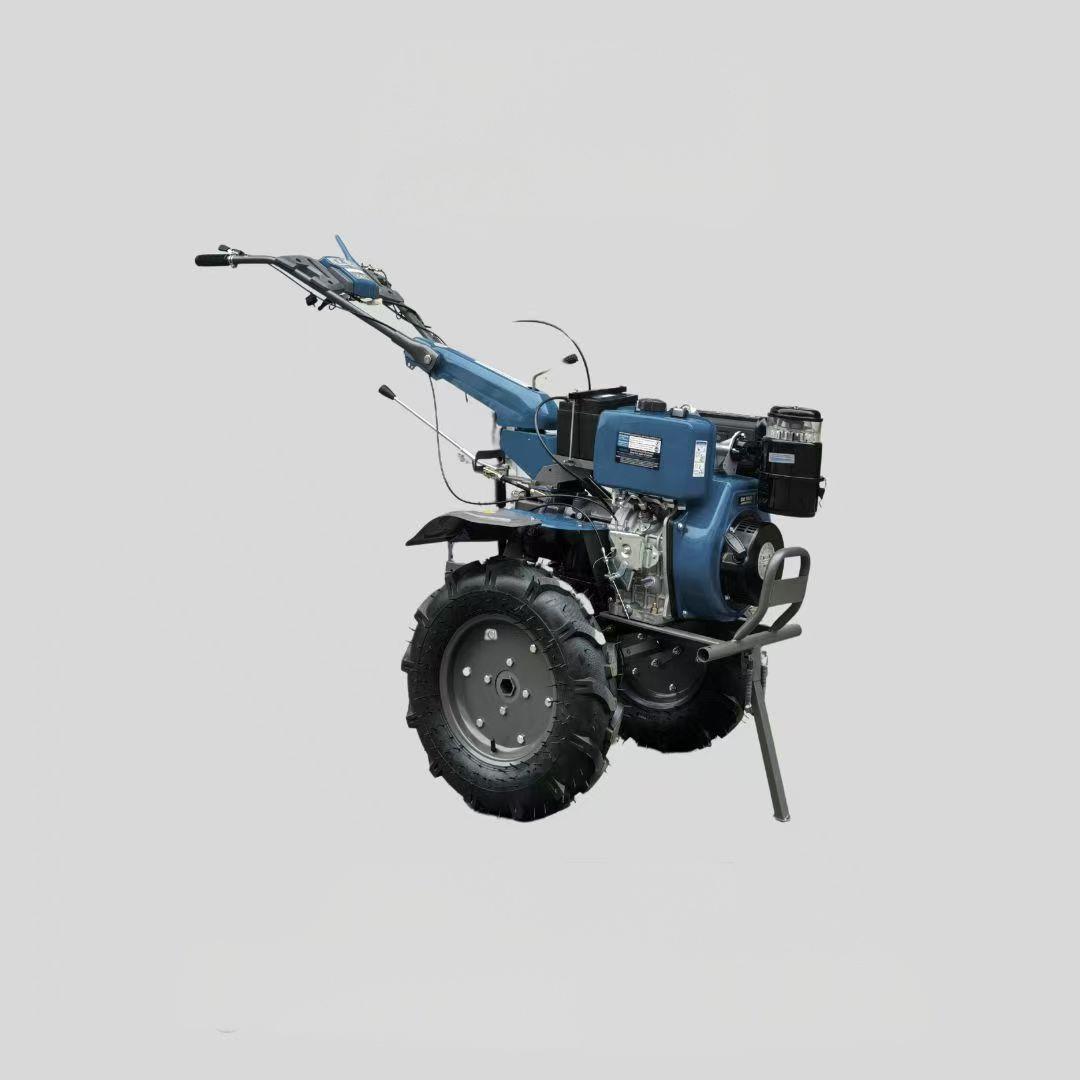

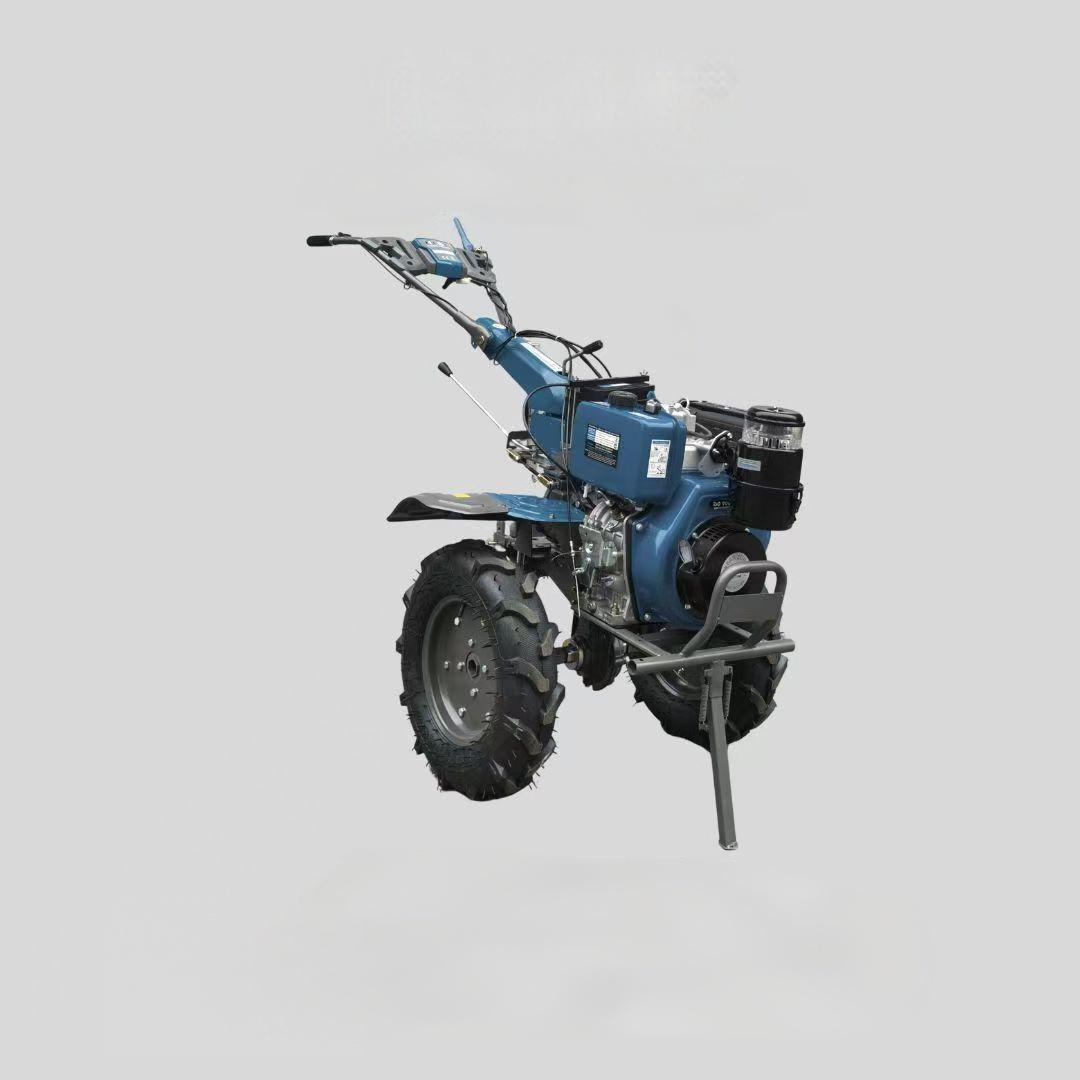

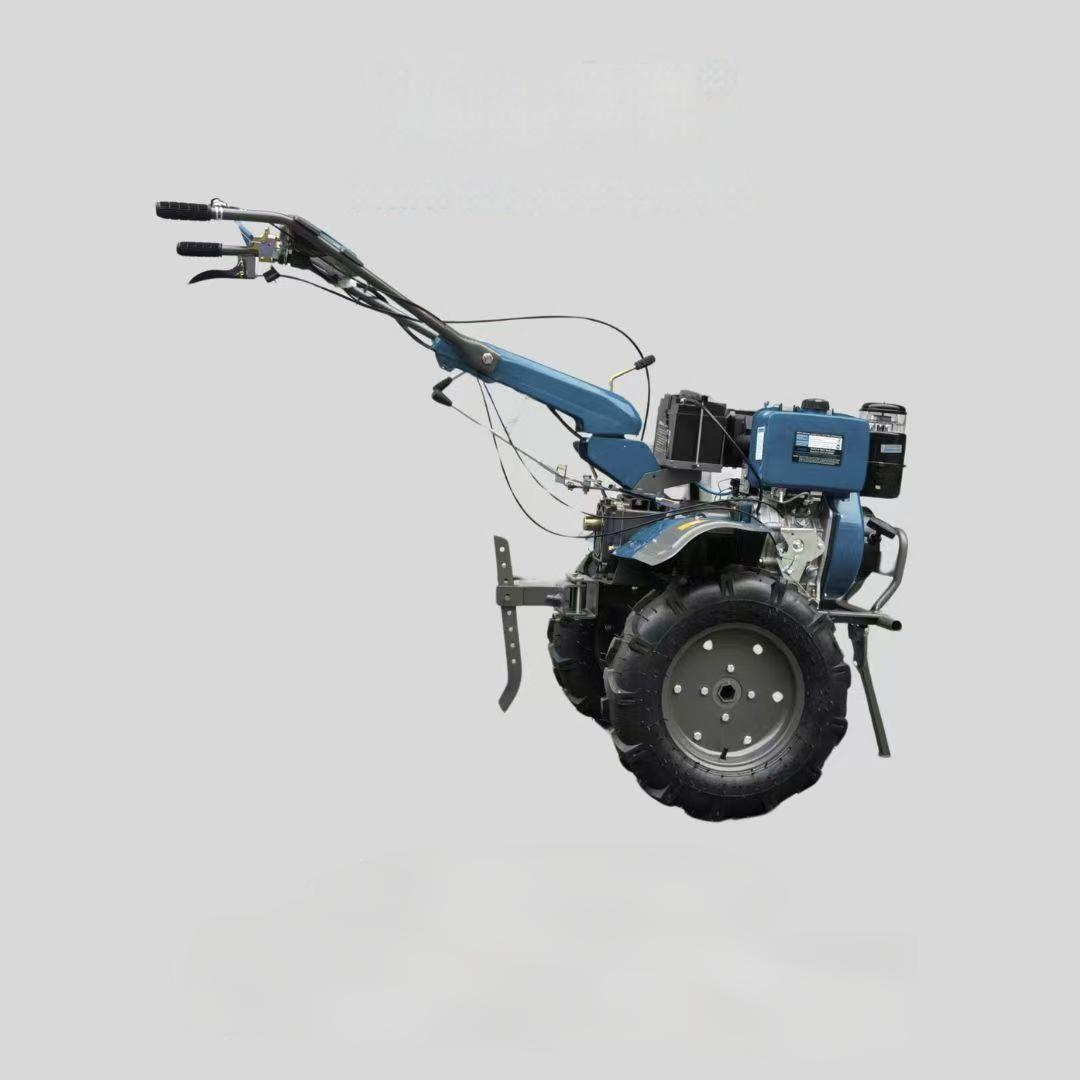

MLBE ML177F 9HP Petrol Power Tiller
Who is this model for?
The ML177F petrol power tiller combines a 270 cc, 9 HP engine with a #32 six-speed gearbox for cultivation and soil preparation. Its 1100 mm working width, 32-blade set and low/high speed ranges suit farms and agricultural dealers seeking a gear-driven petrol machine.
Confirm the required starting system, blade set and attachment compatibility for the destination market before ordering. For configuration-specific documents, contact MLBE technical support.
Parameter
| Engine Model | ML177F Petrol |
| Displacement | 270 cc |
| Maximum Output | 9 HP (6.5 kW) at 3600 rpm |
| Starting System | Recoil start |
| Tilling Width | 1100 mm |
| Tilling Depth | ≥100 mm |
| Tilling Blades | 3+1 groups, 32 pcs, with side disc |
| Transmission Mode | #32 6-speed gearbox |
| Shifting Gears | 1, 0, 1, 2; L speed / H speed |
| Main Clutch Type | Friction plate |
| Packing Dimensions | 1050×570×780 mm |
| N.W./G.W. | 115 / 125 kg |
