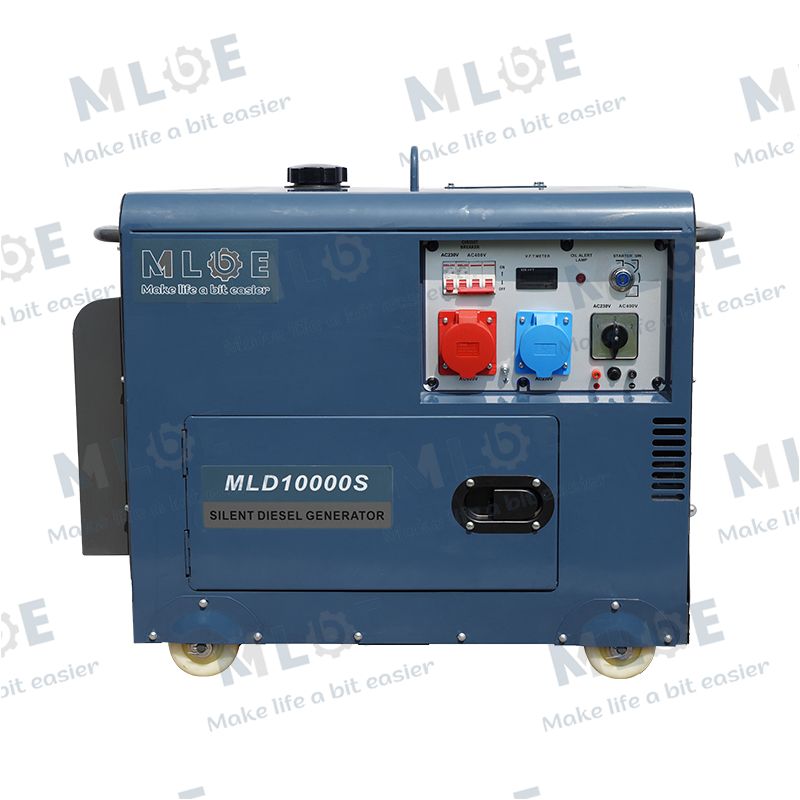

MLD10000S: enclosed-generator selection
Which model does the specification table describe?
This page compares MLD6500S, MLD7500S, MLD10000S and MLD11500S. Use the column for the requested model and ask MLBE to confirm the frequency-specific output in the quotation.
How should I assess the silent-generator description?
Request a measured sound level together with the distance, load and test conditions. The word silent alone does not establish a noise limit for the intended installation.
For order preparation, see the generator supplier checklist. Browse the diesel generator range, or request model-specific documents through MLBE technical support.
Parameter
| Model | MLD6500S | MLD7500S | MLD10000S | MLD11500S |
| Voltage(V) | 120,220,230,120/240,220/380 | |||
| Frequency(Hz) | 50/60 | |||
| Max AC Output(kw) | 5.0/5.5 | 5.5/6.0 | 6.9/7.5 | 7.8/8.3 |
| Rated AC Output(kw) | 4.5/5.0 | 5.0/5.5 | 6.3/6.8 | 7.2/7.8 |
| Power Factor | 1 | 1 | 1 | 1 |
| DC output | 12V/8.3A | 12V/8.3A | 12V/8.3A | 12V/8.3A |
| Phase | Single phase | Single phase | Single phase | Single phase |
| Starting system | electric start with battery | electric start with battery | electric start with battery | electric start with battery |
| 4wheels | with | with | with | with |
| Panel Detail | EU tyep socket, Circuit Breaker, Low Oil Alert Warn | |||
| Engine | MLD186FA, /456cc | MLD188F, /477cc | MLD192FA, /498cc | MLD195FA/532cc |
| Alternator | 100% Copper Wire, Brush Motor, with AVR | |||
| Fuel Tank Capacity | 18L | 18L | 18L | 18L |
| N.W./G.W.(kg) | 130/138 | 134/142 | 138/146 | 143/151 |
| Packing Size(L×W×H) | 962*562*862 | 962*562*862 | 962*562*862 | 962*562*862 |
