MLBE MLG76 / MLG89 / MLG100 / MLG120 petrol chippers: model-level MLBE technical evidence
Source: MLBE published specification by exact model or range. These are reference values for purchasing, not independent measured tests of the production unit being ordered.
| Model / technical item | MLBE published information |
|---|---|
| MLG76 | Published 76 mm nominal branch cutting capacity |
| MLG89 | Published 89 mm nominal branch cutting capacity |
| MLG100 | Published 100 mm nominal branch cutting capacity |
| MLG120 | Published 120 mm nominal branch cutting capacity |
| Engine / starting | Published family spans approximately 6.5–15 HP with recoil/electric configurations; confirm for each model |
Fitment, performance and safety verification
Rated branch diameter is not equivalent to branch throughput or guaranteed performance with knots and forks. Dealer comparisons should record the feed-mouth profile, knife and belt part numbers, wood type, test moisture, chipping rate and clearing procedure. Never infer identical knife geometry or included electric start merely because models share a family name.
Compare MLD diesel chipper family and consult model selection / technical guidance. For a complete factory record request the appropriate manual, genuine parts diagram, machine safety information and configuration-specific test evidence via MLBE technical support. Send your exact model, quantity, destination and intended use to MLBE factory sales.
Matching the MLG range to branch material
Use branch diameter, shape and wood condition to choose between MLG76, MLG89, MLG100 and MLG120. A straight branch and a forked branch with the same measured diameter can present different feeding demands. Specify the material normally processed, not only the largest occasional piece.
Configuration checklist
- Describe usual branch diameter, wood condition and whether the material contains forks or fibrous growth.
- Compare feed opening, starting system, handling weight, access and the required transport arrangement.
- Identify knives, fasteners, belts and other service items by the complete chipper model and production version.
What should a dealer compare beyond maximum diameter?
Compare feed-opening dimensions, starting system, transport weight, blade access and replacement-knife availability. Maximum chipping diameter is a size limit under specified conditions; it is not a guaranteed hourly production rate.
Operation and service planning
Use trained operators and the supplied guarding and protective equipment. Keep hands and loose clothing away from the feed and discharge areas; never bypass a safety device. Stop and isolate the machine and wait for all parts to stop before clearing a blockage, cleaning or servicing.
For the applicable operating instructions or parts reference, send the complete model and production identification to MLBE technical support. The MLBE document centre helps identify the relevant resources. Confirm document revision, included accessories, packaging and agreed support terms for the supplied configuration.
Compare MLD70 for related MLBE options. For factory orders, provide quantities, destination, configuration and artwork requirements through MLBE dealer and OEM supply.
Petrol Wood Chippers with 76-120mm Capacity

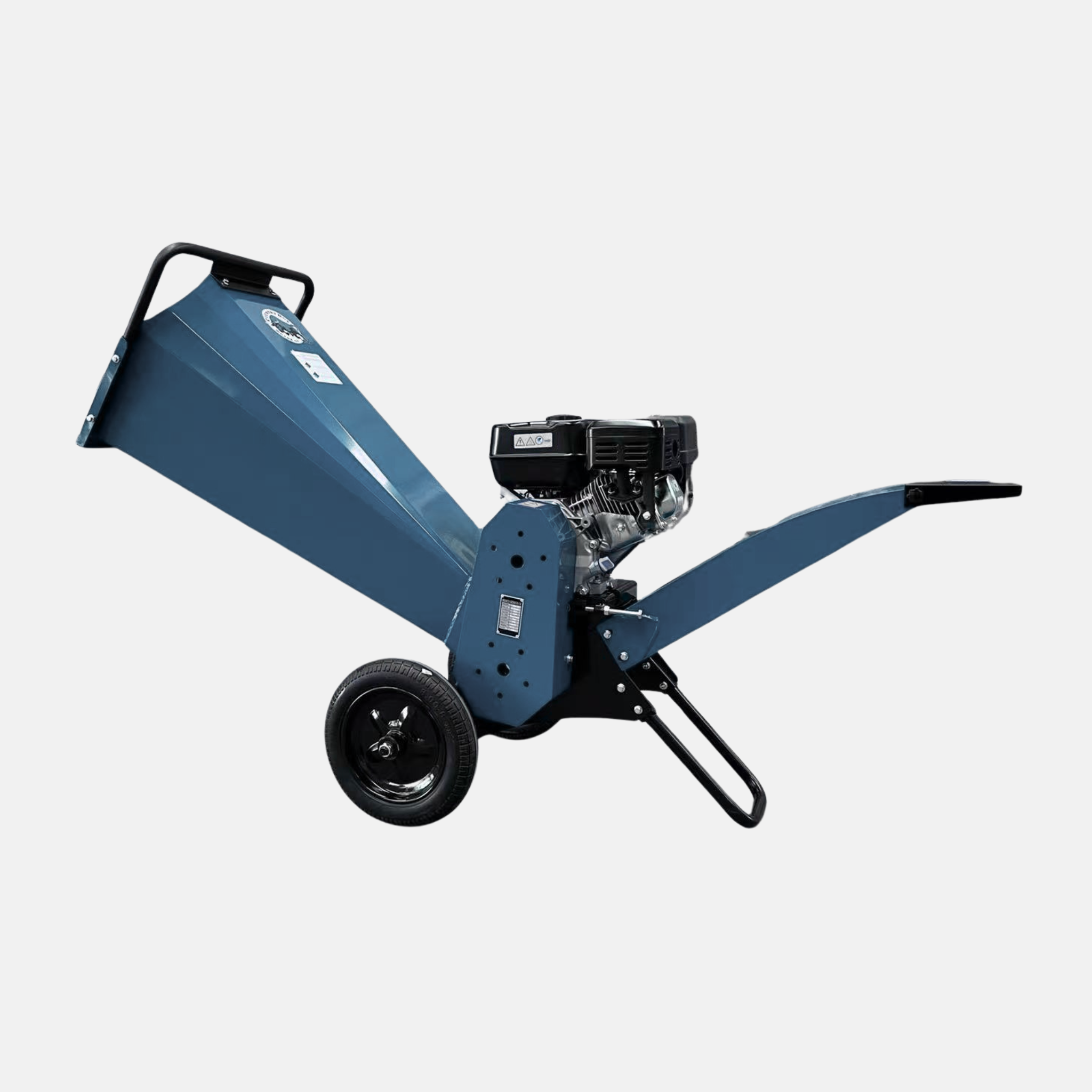

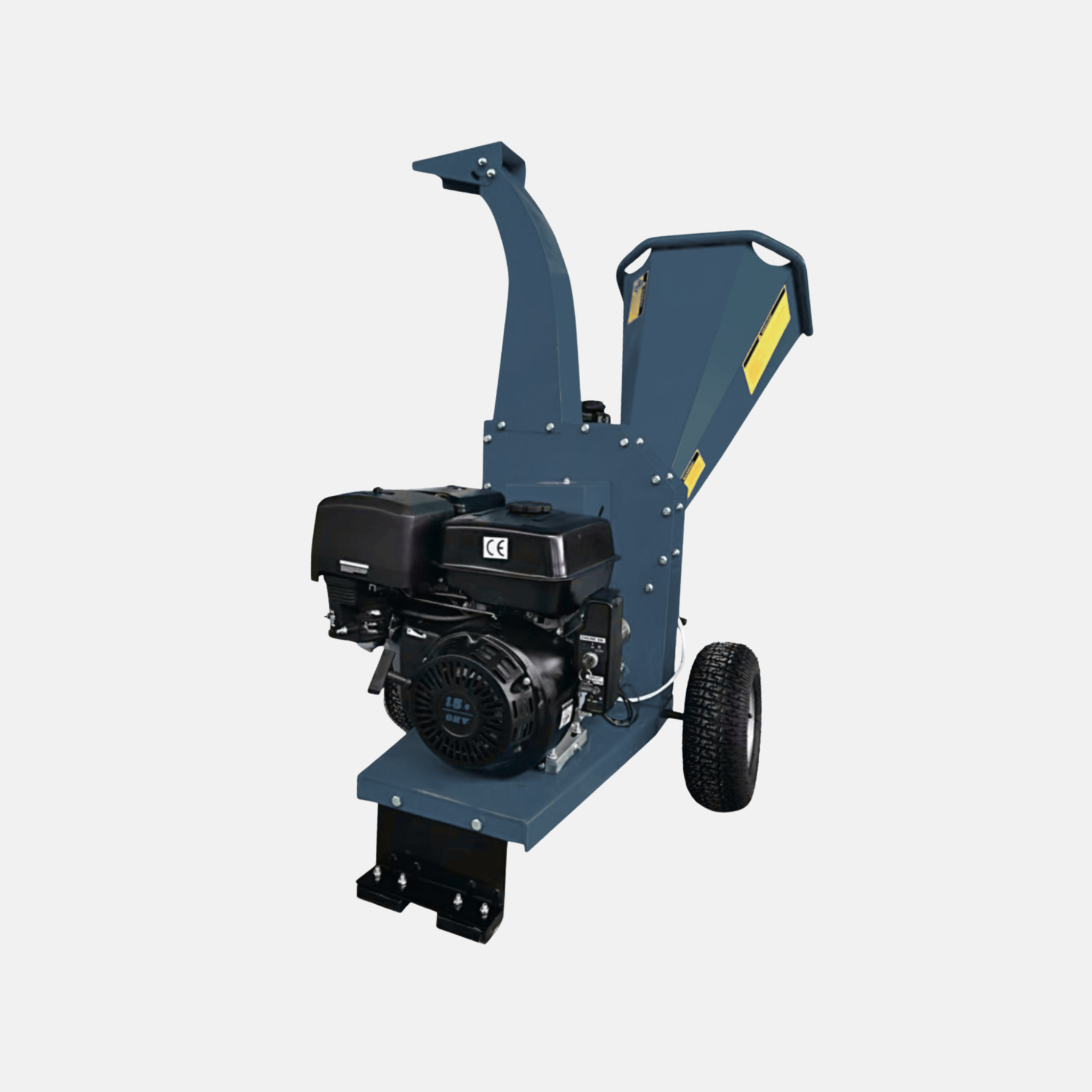

The MLBE MLG76, MLG89, MLG100 and MLG120 petrol wood chippers cover chipping capacities from 76 to 120 mm. The range is designed for processing branches and woody material during garden maintenance, landscaping, orchard work and property clearance.
Engine options range from a compact 6.5HP recoil-start unit to 15HP electric-start configurations. Larger models provide increased feed capacity for buyers who regularly process thicker material. Actual capacity depends on wood species, moisture content, branch shape and operating technique.
Four Capacity Options
The MLG76 and MLG89 suit lighter and medium branch material. The MLG100 and MLG120 provide higher nominal capacity with 420cc engines and electric start. Contact MLBE to confirm feed-opening details and the most appropriate model for the intended application.
Model Comparison
| Specification | MLG76 | MLG89 | MLG100 | MLG120 |
|---|---|---|---|---|
| Chipping capacity | 76 mm | 89 mm | 100 mm | 120 mm |
| Blade speed | 2800 rpm | 2800 rpm | 2800 rpm | 2800 rpm |
| Engine | OHV 4-stroke petrol engine | OHV 4-stroke petrol engine | OHV 4-stroke petrol engine | OHV 4-stroke petrol engine |
| Displacement | 212cc | 389cc | 420cc | 420cc |
| Maximum power | 6.5HP / 3600 rpm | 13HP / 3600 rpm | 15HP / 3600 rpm | 15HP / 3600 rpm |
| Starting system | Recoil | Recoil | Electric | Electric |
| Blade set | 2 knives + 1 knife | 2 knives + 1 knife | 2 knives + 1 knife | Configuration dependent |
| Fuel capacity | 3.6 L | 6 L | 6.5 L | 6.5 L |
| Oil capacity | 0.6 L | 1.1 L | 1.1 L | 1.1 L |
| Fuel consumption | 1.5 L/h | 4 L/h | 4 L/h | 4 L/h |
| Net / gross weight | 80 / 90 kg | 160 / 170 kg | 175 / 185 kg | 175 / 185 kg |
| Package size | 91 x 45 x 88 cm | 93 x 66 x 111 cm | 112 x 57 x 100 cm | 93 x 65 x 112 cm |
Compare MLBE wood chippers, use the Wood Chipper Buying Guide for Importers and Dealers to compare chipping capacity, engine size, feed opening and dealer supply requirements, review the catalogue and user manuals, read the MLBE FAQ, or contact MLBE for feed-opening specifications, packaging, MOQ and international distributor enquiries.
Petrol Wood Chipper FAQ
What chipping capacities are available?
The MLG76, MLG89, MLG100 and MLG120 are listed for branch diameters up to 76 mm, 89 mm, 100 mm and 120 mm respectively.
What engine sizes are used?
The range is listed with 212cc, 389cc and 420cc petrol engines, depending on model.
Which models have electric start?
The MLG100 and MLG120 are listed with electric start, while the MLG76 and MLG89 use recoil start.
Does maximum chipping capacity guarantee the same result for all wood?
No. Actual performance depends on wood species, moisture content, branch shape, feed technique and machine condition.
