ML-LG170F petrol crawler tiller: MLBE published model data
The figures below are extracted from MLBE’s existing model descriptions and technical tables. They must be matched to the ordered equipment and do not claim to be independently measured field performance.
| Model-specific feature | Published reference |
|---|---|
| Engine | Petrol engine; 212 cc and listed 4.0 kW power |
| Transmission / travel | Belt drive, 2 forward / 1 reverse gears and crawler tracks |
| Starting / mass | Manual start; 70 kg net weight |
| Machine size | 1,450 × 500 × 1,200 mm |
| Package | 830 × 460 × 720 mm wooden crate |
| Implements | Plough standard in published specification; other connectors require confirmation |
Field-use evidence and fitment
The published 4.0 kW rating must not be replaced with another engine’s output without matching the engine revision. Crawler track drive is not a verified load rating. Compare this lighter petrol unit with the 247 cc ML-LG173F and water-cooled ML-LG8D for the actual field application.
Compare with the ML-LG173F diesel crawler. To prepare an independently useful cultivation test, record soil texture, moisture, initial compaction, blade arrangement, travel gear, measured working depth, engine rpm and cultivated area over time. These are suggested measurement fields, not MLBE test results.
Check the MLBE product manuals and request matching spare-parts drawings, an attachment fitment record and maintenance intervals from MLBE technical support. For a confirmed factory configuration enquire directly by email.
Preparing an ML-LG170F attachment package
The ML-LG170F is listed with a petrol engine, tracked travel and a plough. For a complete package, identify the main cultivation task and any separate harvesting or ditching requirement. Allow space for the operator and for turning with the longest fitted implement.
Configuration checklist
- Describe soil condition, crop rows, access space and the intended ploughing, ditching or harvesting task.
- Confirm the connector, mounting and permitted operating arrangement for every proposed implement.
- Record the track and control configuration, starting equipment, packing details and model-specific service parts.
Can an implement be moved between crawler models?
Only after the mounting arrangement and operating requirements have been checked. Similar chassis dimensions do not confirm identical connectors, loads or control clearances. Specify ML-LG170F on the attachment order.
Operation and service planning
Check track condition, controls, guards and the fitted implement before work. Keep sufficient space for the operator and turns. Track drive does not establish a safe gradient or load limit; follow the machine-specific limits and stop all movement before adjustments or clearing obstructions.
For the applicable operating instructions or parts reference, send the complete model and production identification to MLBE technical support. The MLBE document centre helps identify the relevant resources. Confirm document revision, included accessories, packaging and agreed support terms for the supplied configuration.
Compare ML-LG173F and ML-LG8D for related MLBE options. For factory orders, provide quantities, destination, configuration and artwork requirements through MLBE dealer and OEM supply.

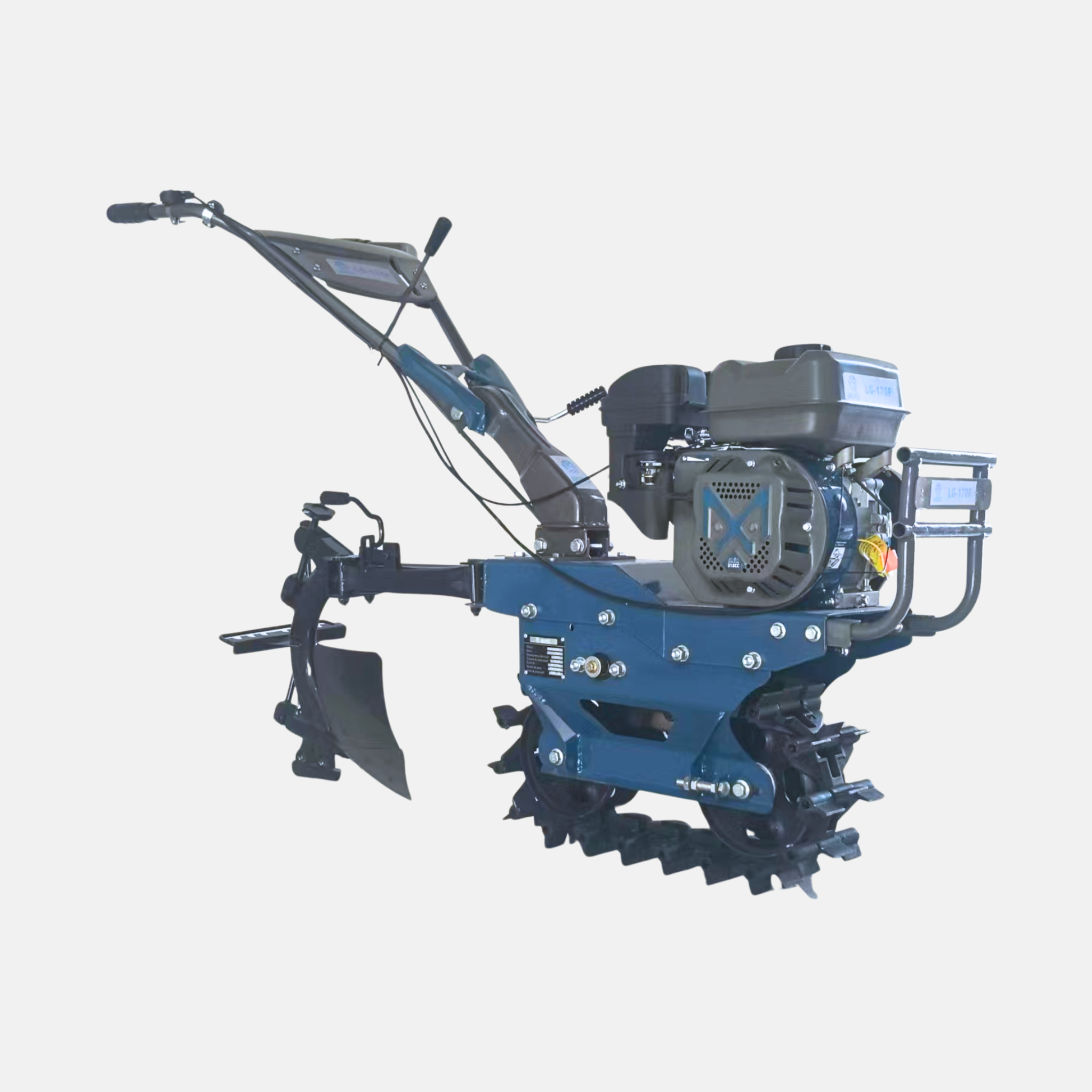

212cc Petrol Crawler Tiller with Tracked Drive
The MLBE ML-LG170F crawler tiller combines a compact tracked chassis with a Petrol engine. The crawler-track layout provides a broad ground-contact area for cultivation and field tasks where wheeled machines may have limited traction.
A belt transmission and two forward gears plus one reverse gear give the operator straightforward control. The machine is supplied with a plough, while optional potato-harvesting and three-line ditching or grass-removal tools can be selected for different crop and soil requirements.
For Cultivation, Ditching and Harvest Support
This compact tracked platform is suited to small farms, vegetable plots, orchards and other confined agricultural areas. Confirm soil conditions, working depth and required attachment with MLBE before ordering so the machine can be configured for the intended application.
Compare Crawler Tiller Options
Compare this model with the ML-LG173F diesel crawler tiller and ML-LG8D water-cooled diesel crawler tiller. The ML-LG170F is listed at 70 kg net, compared with 75 kg for ML-LG173F and 97 kg for ML-LG8D. Compare fuel type, handling weight and the required attachment connectors before selecting a model.
Technical Specifications
| Specification | Value |
|---|---|
| Model | ML-LG170F |
| Engine | Petrol engine |
| Power | 4.0 kW / 212cc |
| Starting system | Manual start |
| Transmission | Belt |
| Gears | 2 forward / 1 reverse |
| Moving mode | Crawler track |
| Overall dimensions | 1450 x 500 x 1200 mm |
| Net weight | 70 kg |
| Wooden-box package | 83 x 46 x 72 cm |
| Loading quantity | 103 units / 20GP; 210 units / 40HQ |
| Standard accessory | Plough |
| Optional accessories | Heart-shaped potato harvester; potato harvester; three-line ditcher / grass remover (custom connectors required) |
View more MLBE power tillers or contact MLBE for attachment compatibility, MOQ and international supply.
