MLBE ML-GC450 / ML-GC500 / ML-GC600 / ML-GC800 belt-driven stubble mowers: model-level MLBE technical evidence
Source: MLBE published specification by exact model or range. These are reference values for purchasing, not independent measured tests of the production unit being ordered.
| Model / technical item | MLBE published information |
|---|---|
| ML-GC450 | 450 mm maximum working width, listed 4.0 kW at 3,600 rpm |
| ML-GC500 | 500 mm maximum working width, listed 4.5 kW at 3,600 rpm |
| ML-GC600 | 600 mm maximum working width, listed 5.1 kW at 3,600 rpm |
| ML-GC800 | 800 mm maximum working width, listed 8.0 kW at 3,600 rpm |
| Drivetrain | Belt transmission, tension-type working clutch and spline-type travel clutch |
| Cutting platform | Double-shaft wheeled structure; multi-shaft cutting device |
Fitment, performance and safety verification
Maximum working width is not the total assembled machine width and the four listed outputs refer to different model columns. Actual cutting performance depends on vegetation type, density, moisture and forward speed. Confirm compatible knives, guards, replacement belt and clutch parts for the selected width rather than stocking one belt for the entire series.
Compare MLGC60-N gear-driven alternative and consult model selection / technical guidance. For a complete factory record request the appropriate manual, genuine parts diagram, machine safety information and configuration-specific test evidence via MLBE technical support. Send your exact model, quantity, destination and intended use to MLBE factory sales.
Choosing between the ML-GC working widths
Compare ML-GC450, ML-GC500, ML-GC600 and ML-GC800 against row spacing, access width and the growth to be cut. A wider cutting path can be useful in open areas, while a narrower layout may be easier to position between obstacles. Include the assembled machine width in the comparison.
Configuration checklist
- Describe vegetation type, density, ground conditions and the required cutting height.
- Measure rows, access routes and turning areas using overall machine dimensions, not working width alone.
- Confirm the cutting assembly, guards, replacement blades and transmission service parts for the exact model.
What matters when specifying a belt-driven mower?
Identify the exact model, belt specification, guarding and replacement cutting parts. Belt condition and correct adjustment affect power transmission; maintenance settings must come from the instructions for the supplied configuration.
Operation and service planning
Clear stones, wire and debris from the work area and keep bystanders away from the discharge path. Follow the approved instructions for terrain and mowing direction. Stop the engine and wait for blades to stop before clearing the deck or changing components; isolate the machine before maintenance.
For the applicable operating instructions or parts reference, send the complete model and production identification to MLBE technical support. The MLBE document centre helps identify the relevant resources. Confirm document revision, included accessories, packaging and agreed support terms for the supplied configuration.
Compare MLGC60-N for related MLBE options. For factory orders, provide quantities, destination, configuration and artwork requirements through MLBE dealer and OEM supply.

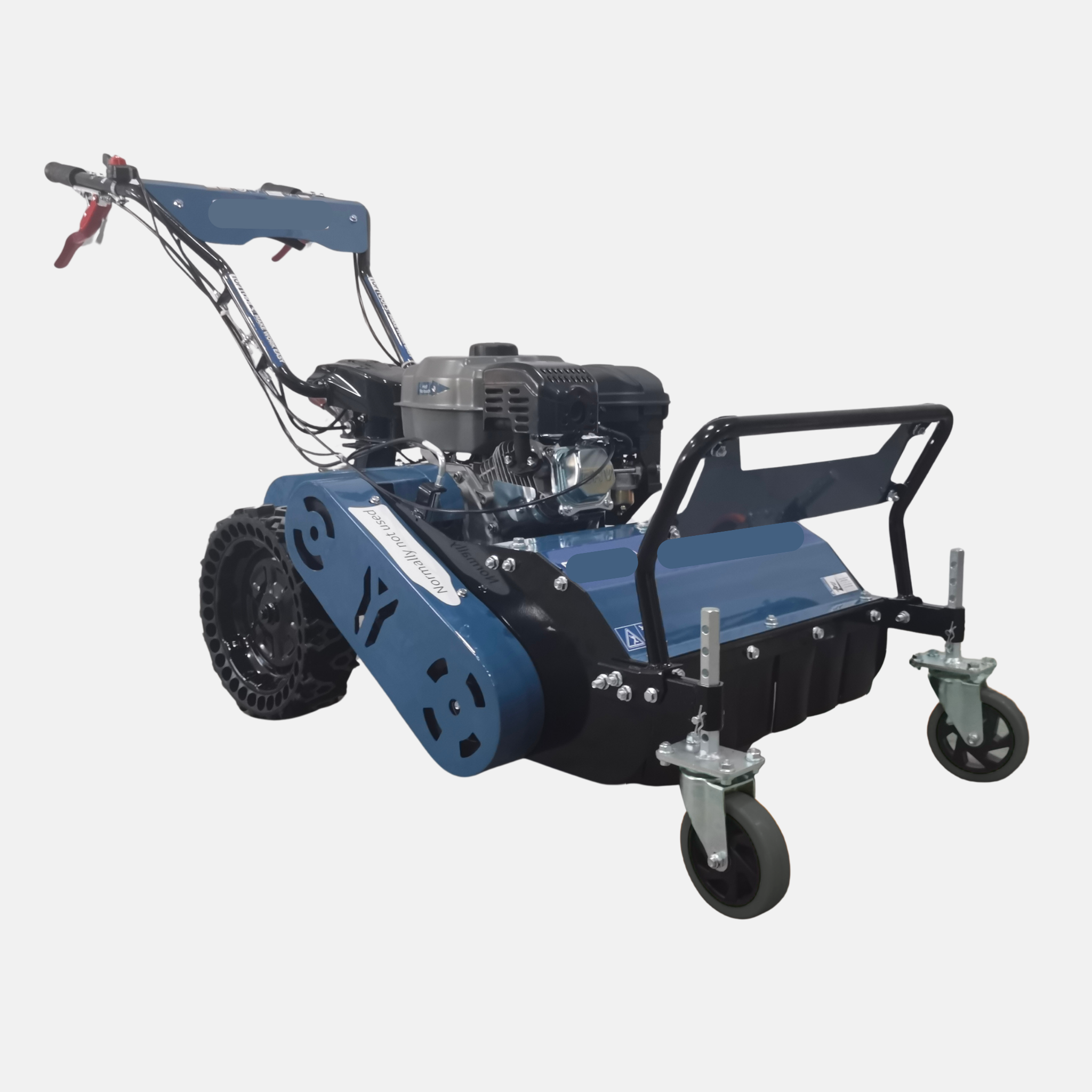

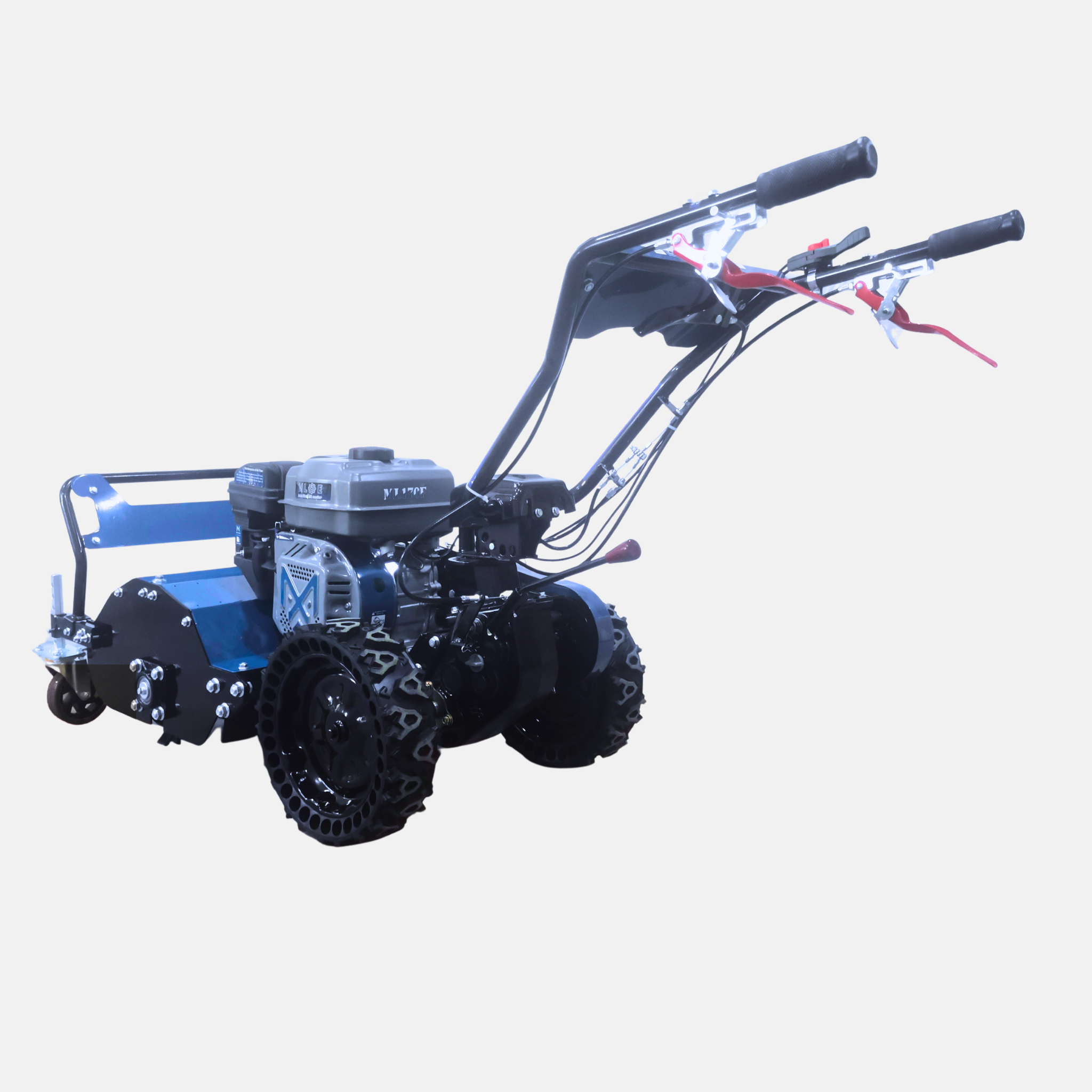

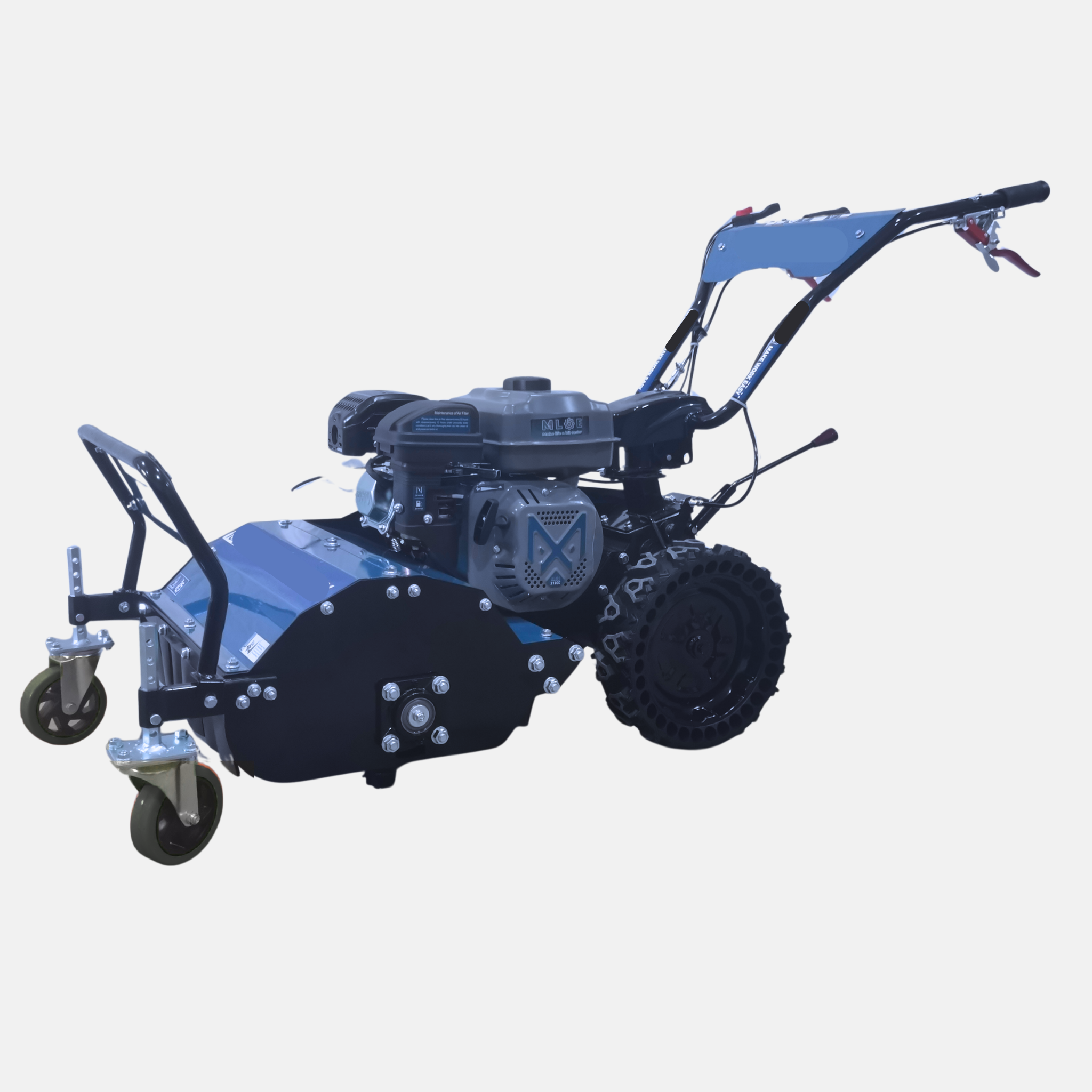

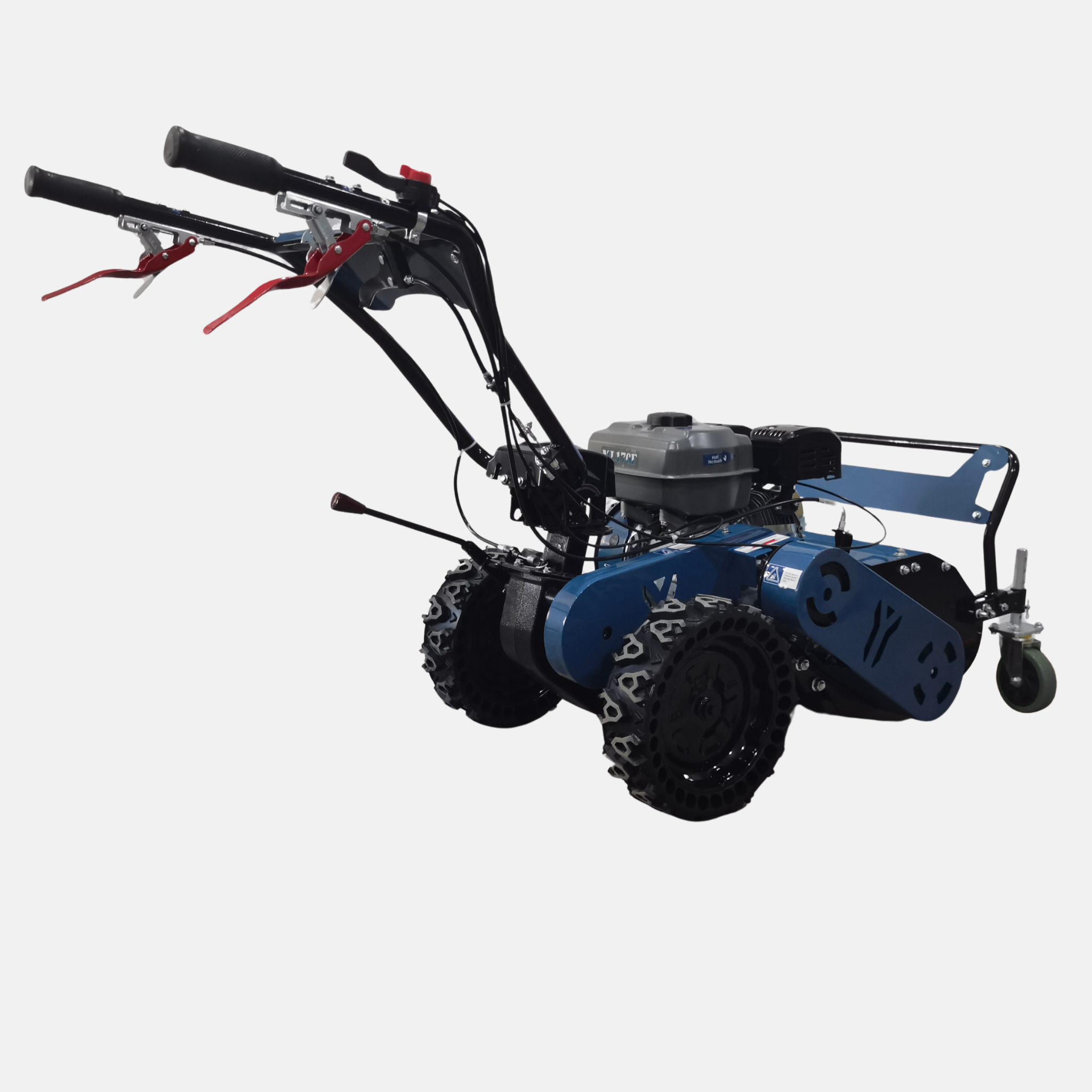

Belt-Driven Stubble Mowers in Four Working Widths
The MLBE ML-GC series provides compact belt-driven stubble mowers for cutting grass, weeds and light crop residue. Four models cover maximum working widths from 450 to 800 mm, allowing dealers and equipment users to select a machine that matches row spacing, access and required cutting capacity.
Each model uses a double-shaft wheeled structure, adjustable handlebars and a multi-shaft cutting device. The tension-type working clutch and spline-type travel clutch provide straightforward mechanical control during field operation.
For Orchards, Fields and Property Maintenance
The range is suitable for orchard-floor maintenance, field-edge clearing, weed control and residue cutting where a walk-behind machine is easier to manoeuvre than tractor-mounted equipment. Contact MLBE to match engine and working width to vegetation density and local operating conditions.
Model Comparison
| Specification | ML-GC450 | ML-GC500 | ML-GC600 | ML-GC800 |
|---|---|---|---|---|
| Structure | Double-shaft wheeled | Double-shaft wheeled | Double-shaft wheeled | Double-shaft wheeled |
| Handlebar adjustment | Horizontal / vertical | Horizontal / vertical | Horizontal / vertical | Horizontal / vertical |
| Transmission | Belt | Belt | Belt | Belt |
| Working clutch | Tension type | Tension type | Tension type | Tension type |
| Travel clutch | Spline type | Spline type | Spline type | Spline type |
| Rated output / speed | 4.0 kW / 3600 rpm | 4.5 kW / 3600 rpm | 5.1 kW / 3600 rpm | 8.0 kW / 3600 rpm |
| Cutting device | Multi-shaft | Multi-shaft | Multi-shaft | Multi-shaft |
| Maximum working width | 450 mm | 500 mm | 600 mm | 800 mm |
