ML177F–ML192F: selecting a larger petrol engine
Is the largest displacement always the appropriate choice?
Select the engine against the equipment’s required power, speed and mechanical interface. Compare the individual model columns, then confirm the shaft, mounting pattern, starting arrangement and service-parts package with MLBE.
Explore the gasoline engine range and petrol engine troubleshooting guide. For configuration-specific documents, contact MLBE technical support.

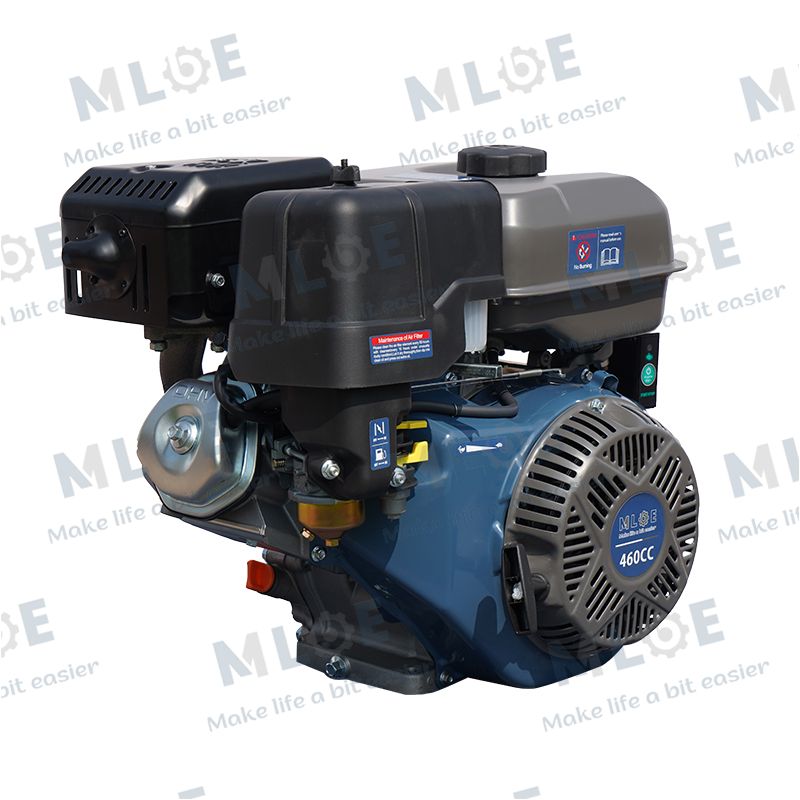

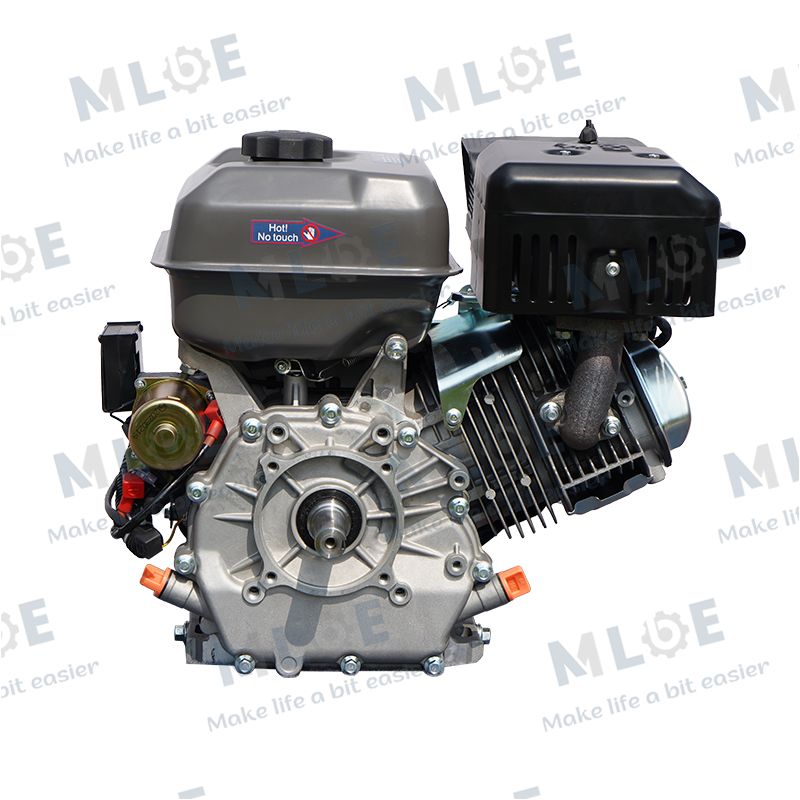

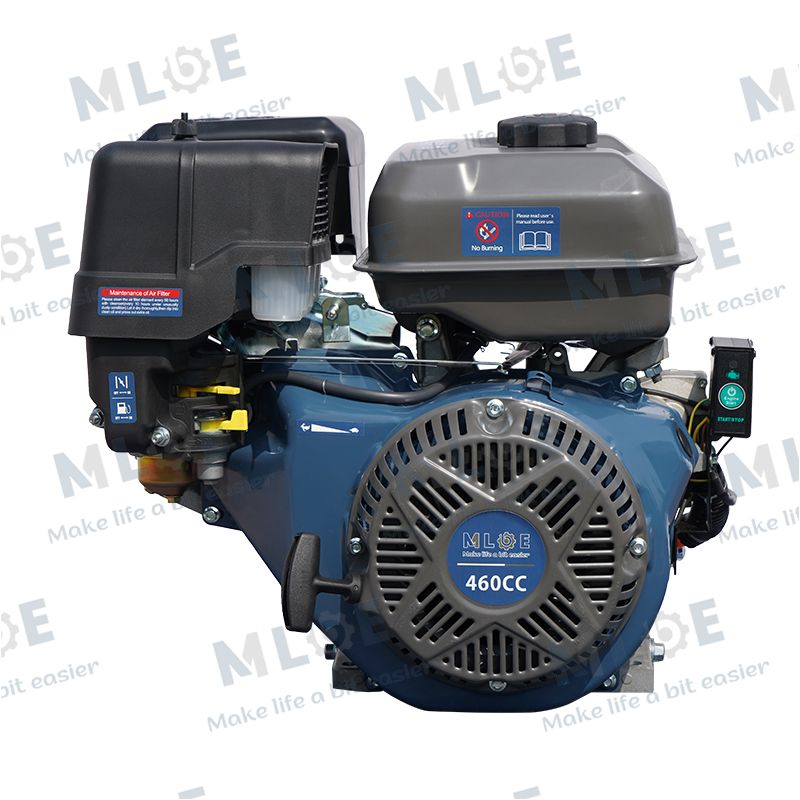

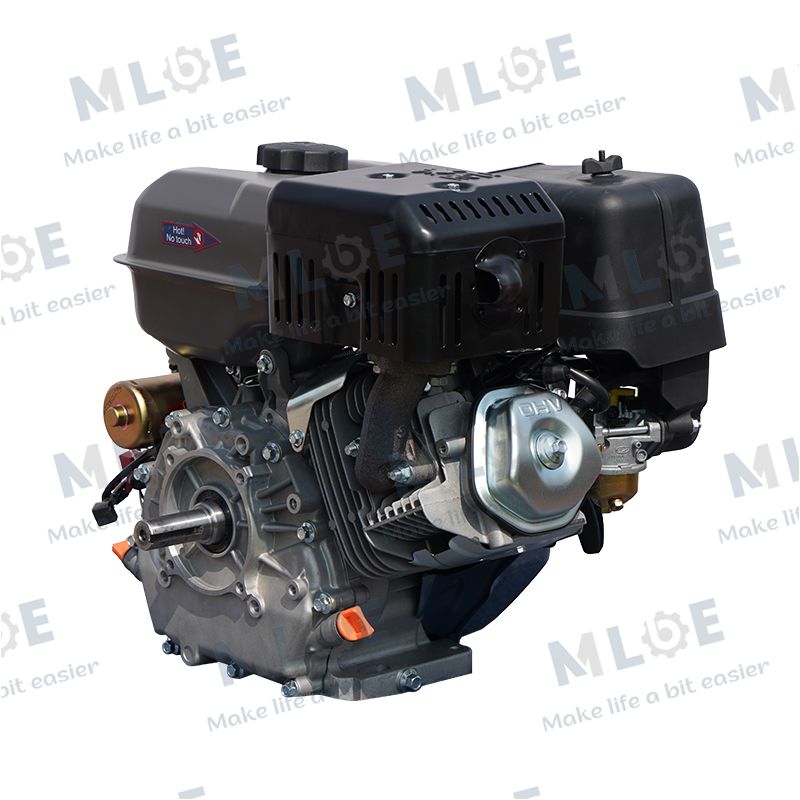

MLBE ML177F / ML188F / ML190F / ML192F Gasoline Engines
The MLBE ML177F, ML188F, ML190F and ML192F are four-stroke gasoline engines for generators, water pumps, power tillers and other agricultural or light industrial equipment. The range offers several displacement and output options for distributors, equipment manufacturers and replacement-engine applications.
Key Features
- Four-stroke, single-cylinder gasoline engine platform
- Recoil-start configuration with electric-start options where specified
- Anti-vibration design for smoother regular operation
- Suitable for agricultural, landscaping, construction and portable power equipment
- Designed for applications requiring higher output than smaller 168F/170F-class engines
Technical Specifications
| Specification | ML177F | ML188F | ML190F | ML192F |
|---|---|---|---|---|
| Displacement | 270 cc | 389 cc | 420 cc | 456 cc |
| Net power | 6.6 kW at 3600 rpm | 7.8 kW at 3600 rpm | 8.8 kW at 3600 rpm | 10.5 kW at 3600 rpm |
| Net torque | 25 N·m at 2500 rpm | 25 N·m at 2500 rpm | 26.5 N·m at 2500 rpm | 29 N·m at 2500 rpm |
| Fuel tank capacity | 6.5 L | 6.5 L | 6.5 L | 6.5 L |
| Engine oil capacity | 1.1 L | 1.1 L | 1.1 L | 1.1 L |
Choosing the Appropriate Model
Select the engine according to the required output, duty cycle, equipment interface and starting system. Importers should also confirm the shaft configuration, packaging, spare-parts requirements and applicable compliance documentation for the destination market before ordering.
