Name: MLBE MLD186FA / MLD188F / MLD192FA Diesel Engines
Brand: MLBE

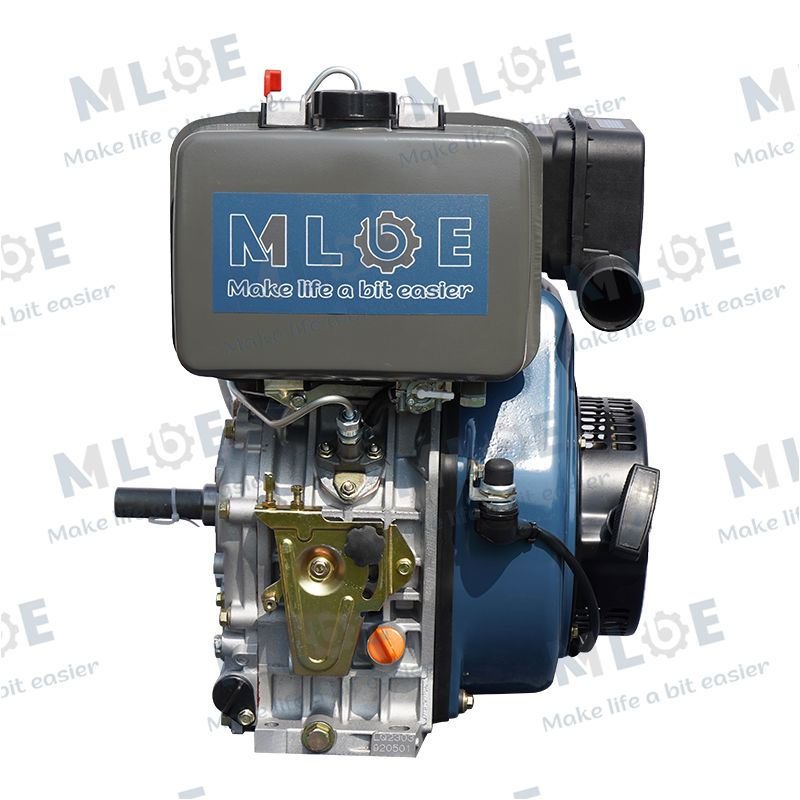

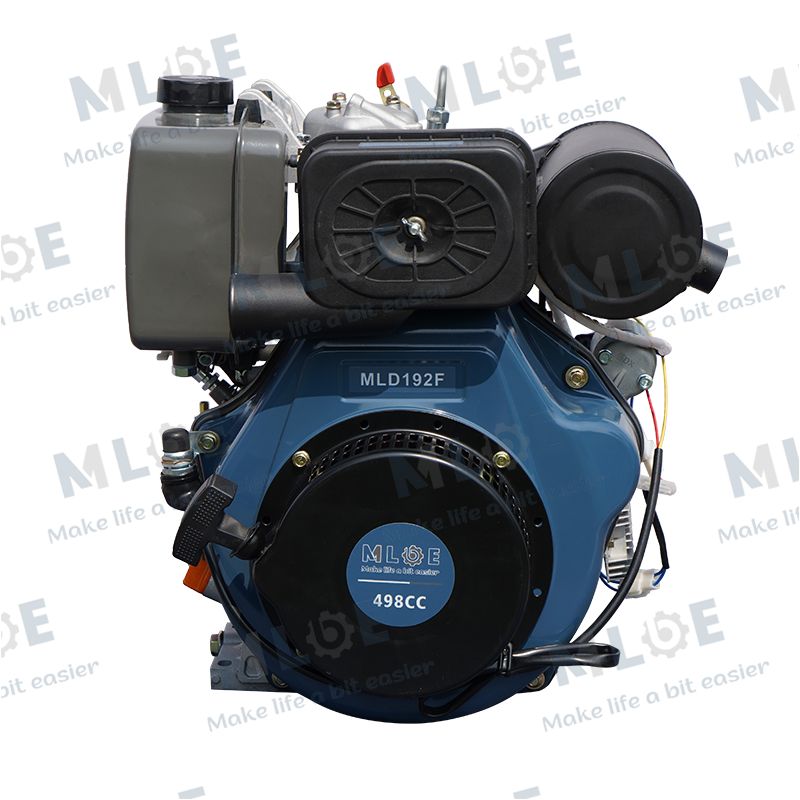

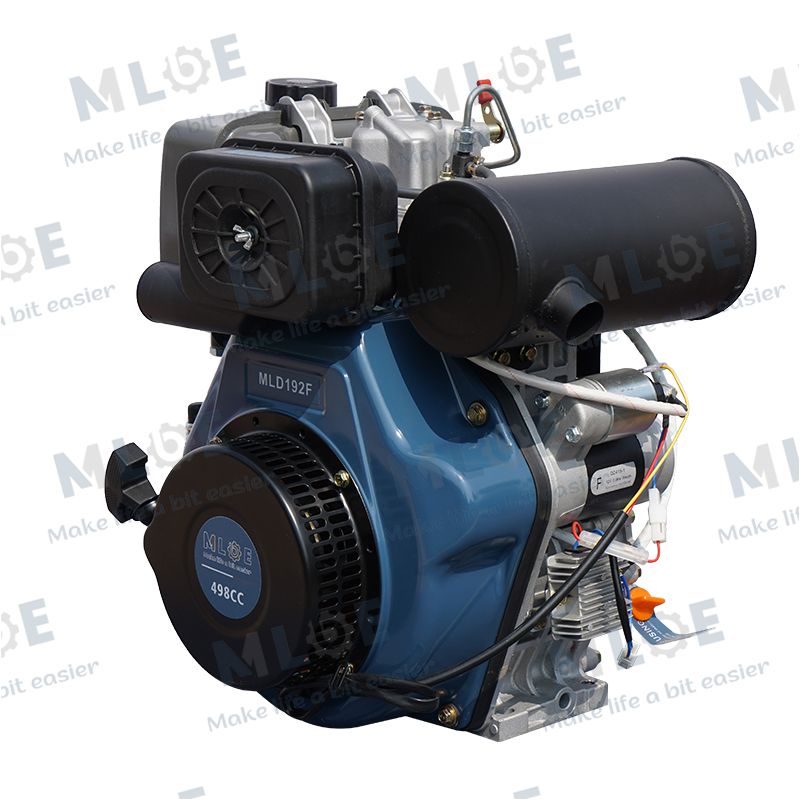

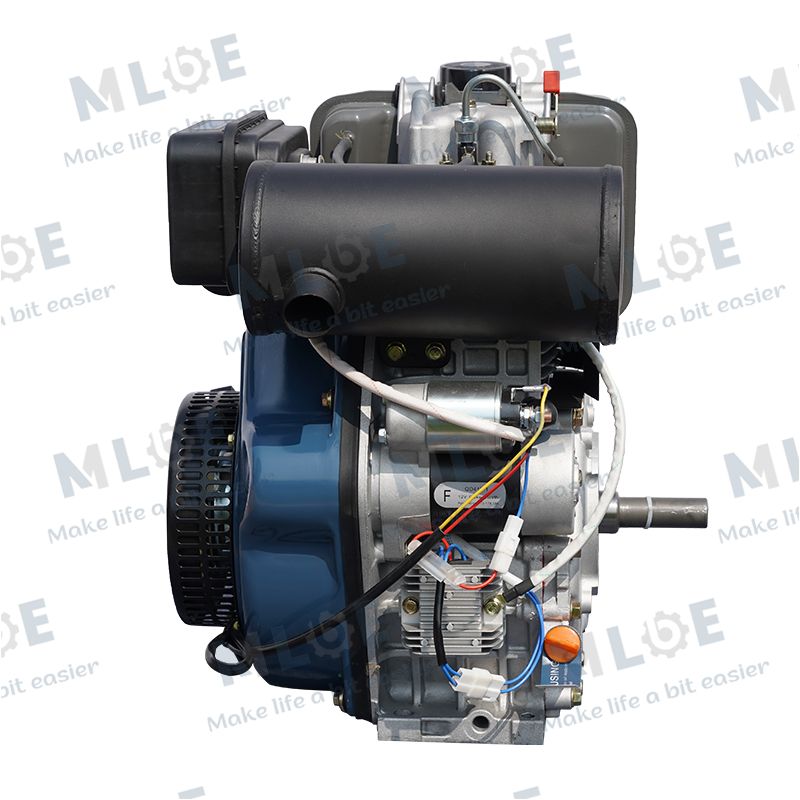

MLBE MLD186FA / MLD188F / MLD192FA Diesel Engines

MLBE MLD186FA / MLD188F / MLD192FA Diesel Engines

418–498cc diesel engine range for generators, water pumps and agricultural equipment
3000 / 3600rpm operating speeds with multiple power levels for medium-duty machinery
Shared application positioning across the series makes it easier for dealers to offer stepped power options within one engine family
Suitable for OEM and replacement-engine sourcing where shaft, mounting, speed and equipment compatibility are checked before ordering

MLD186FA–MLD195FA: choosing a configuration

Which model should appear on the order specification?

The table includes MLD186FA, MLD188F, MLD192FA and MLD195FA. State the exact model, required speed and starting system, and obtain the corresponding shaft drawing and parts list before confirming the order.

Explore the diesel engine range and diesel maintenance guide. For configuration-specific documents, contact MLBE technical support.

Parameter

Model	MLD186FA	MLD188F	MLD192FA	MLD195FA
Bore*Stroke(mm)	86*72	88*75	92*75	95*75
Displacement(cc)	418	477	498	532
Engine Speed(rpm)	3000/3600	3000/3600	3000/3600	3000/3600
Rated AC Output (hp)	7.7/8.6	9.0/9.8	9.4/10.3	10.0/10.9
Max. AC Output (hp)	8.6/10.0	10.0/10.9	10.3/11.4	10.9/12
Fuel Tank Capacity(L)	5.5	5.5	5.5	5.5
Lube Oil Capacity(L)	1.65	1.65	1.65	1.65
Fuel comsumption(g/kw.h)	280	280	280	270
N.W./G.W.(kg)	44/47	45/48	50/53	50/53
Packing Size(L×W×H)	528485565	528485565	528485565	528485565
