Name: MLBE MLD50H / MLD80H Diesel Water Pumps
Brand: MLBE

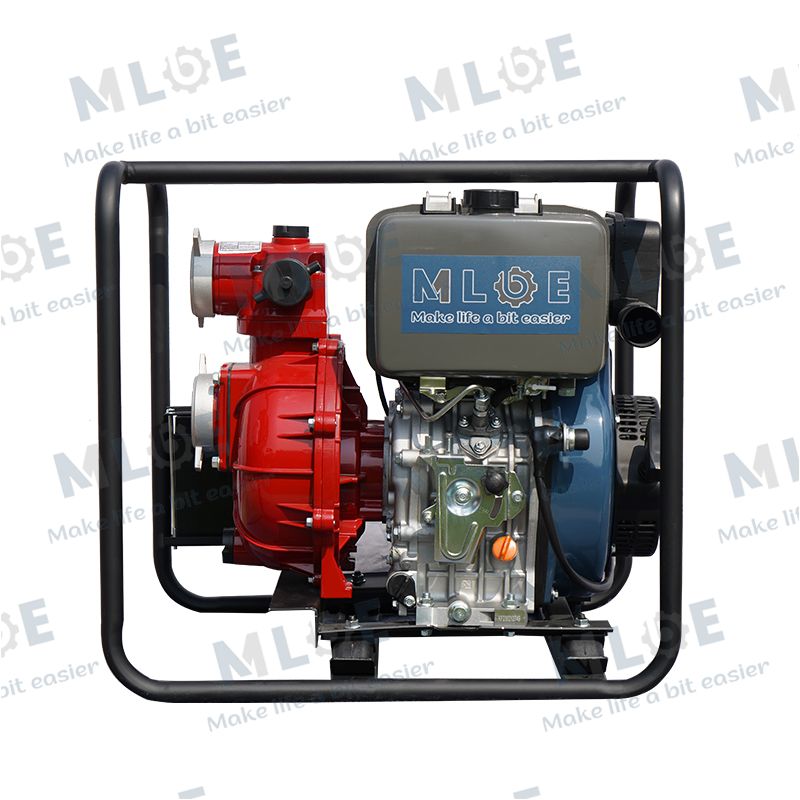

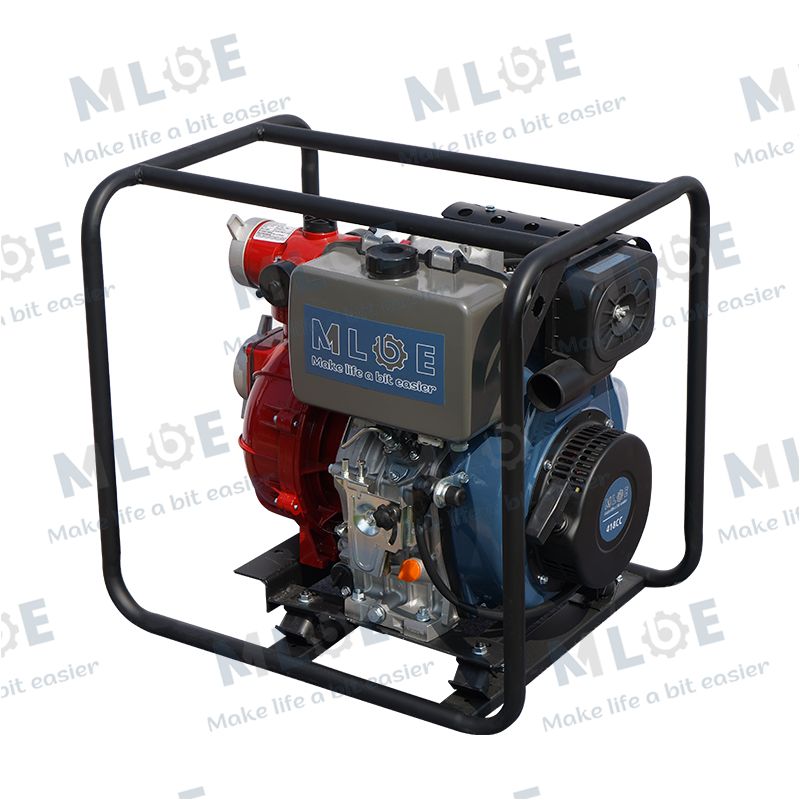

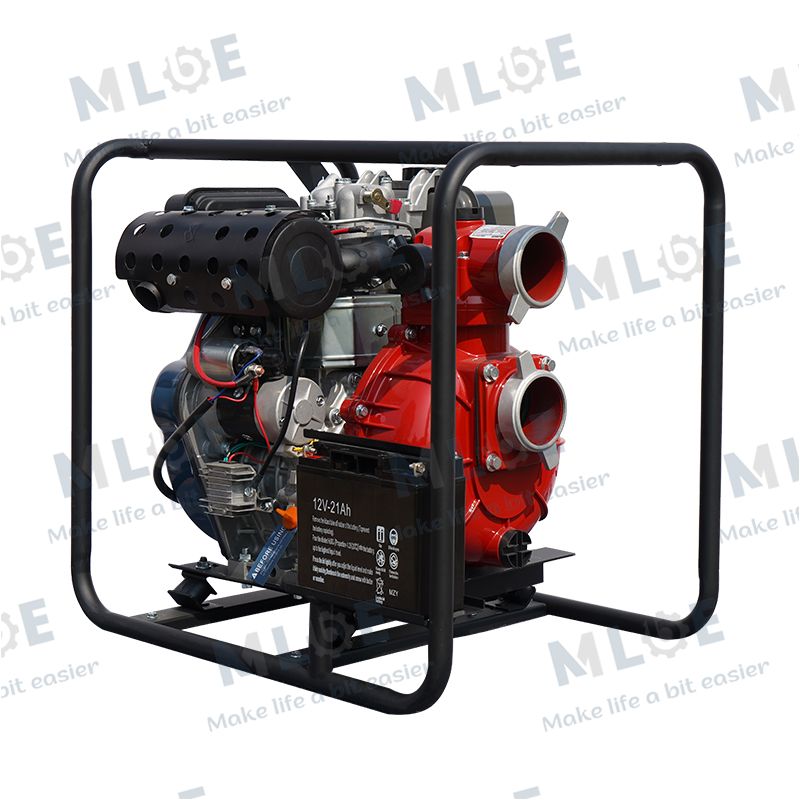

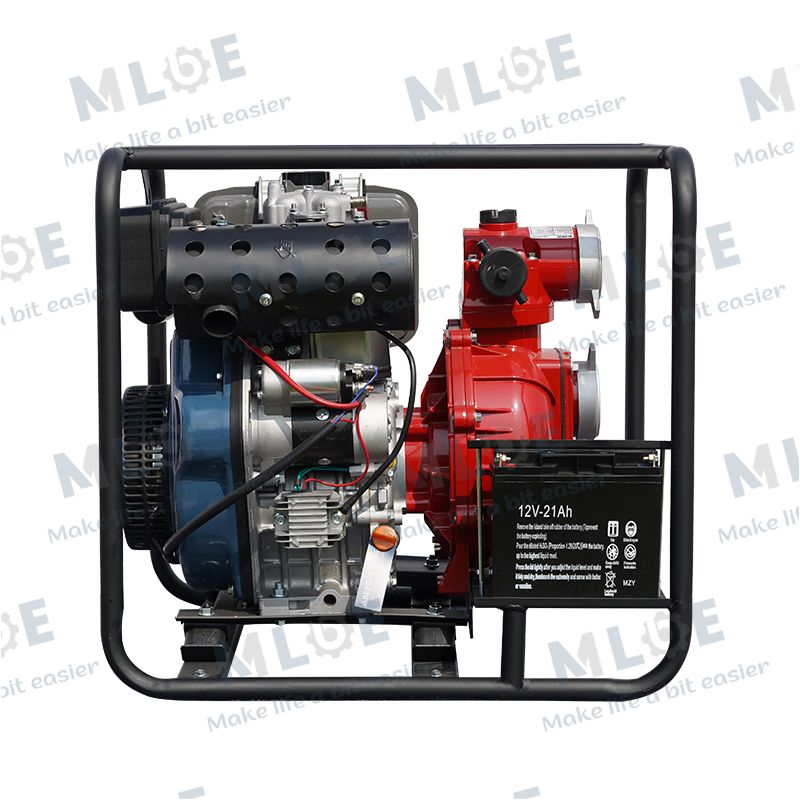

MLBE MLD50H / MLD80H Diesel Water Pumps

MLBE MLD50H / MLD80H Diesel Water Pumps

High-lift diesel water-pump range for irrigation and applications requiring greater delivery head
2-inch and 3-inch configurations with diesel engine options matched to different flow requirements
High-head positioning gives distributors a clear option for longer-distance or elevation-sensitive water-transfer enquiries
Buyers should match discharge head, flow, suction conditions and hose layout to the intended installation before ordering

MLD50H / MLD80H: high-lift selection

What should I confirm about the pump head?

The table lists different units for the two maximum-head entries. Ask MLBE to confirm the head in metres and supply the flow-versus-head curve for the selected model; the required flow should be checked at the intended working head.

Explore the diesel water pump range and water pump types guide. For configuration-specific documents, contact MLBE technical support.

Parameter

Model	MLD50H	MLD80H
	Diesel HIGH LIFT water pumps	Diesel HIGH LIFT water pumps
Inlet diameter	2inch	3inch
Outlet diameter	2inch/1.5inch/1.5inch	3inch/1.5inch/1.5inch
Max. capacity	23m³/hr	40m³/hr
Max discharge head	80mm	80m
Engine	MLD178F/296cc	MLD186FA, /418cc
Engine speed	3600 rpm	3600 rpm
Self-priming time	180s/7m	180s/7m
Max. suction head	7m	7 m
Fuel tank	3.5 L	5.5L
Start mode	Recoil / Electric start	Recoil / Electric start
N.W./G.W.(kg)	42/44	75/78
Packing Size(L×W×H)	575475590	670510630
